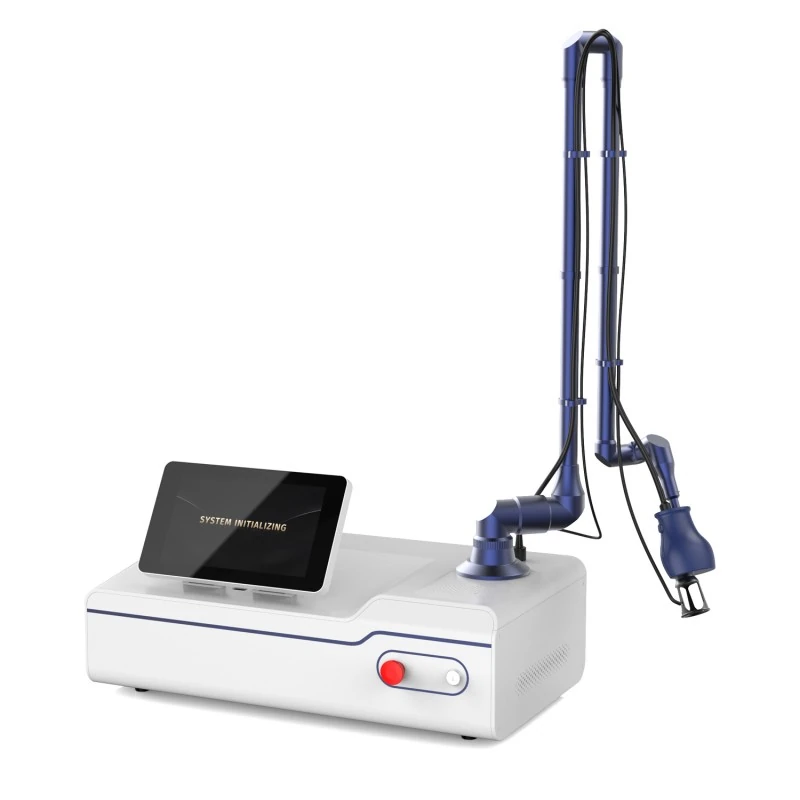

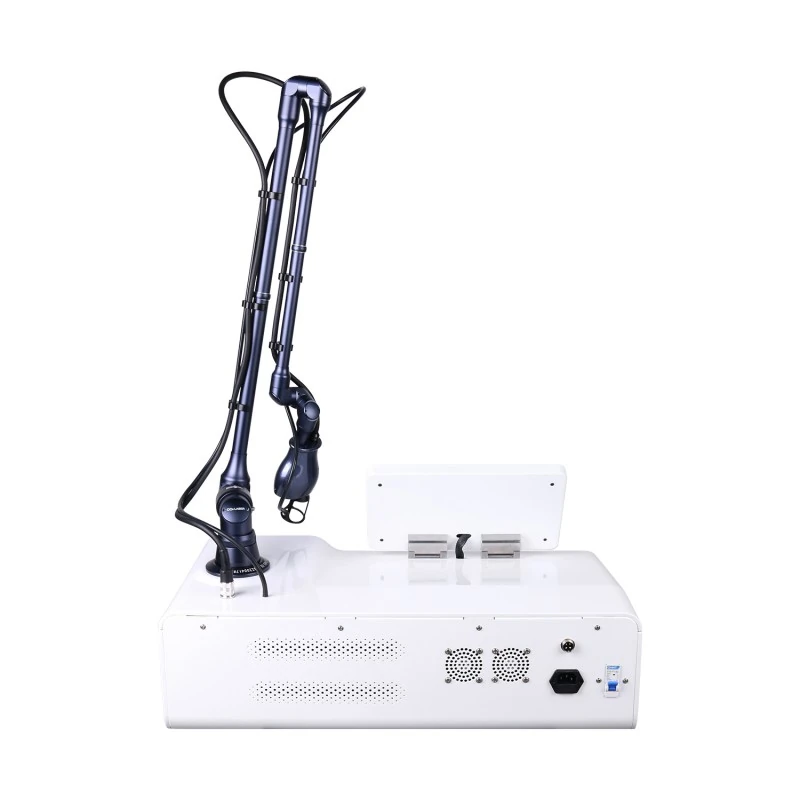

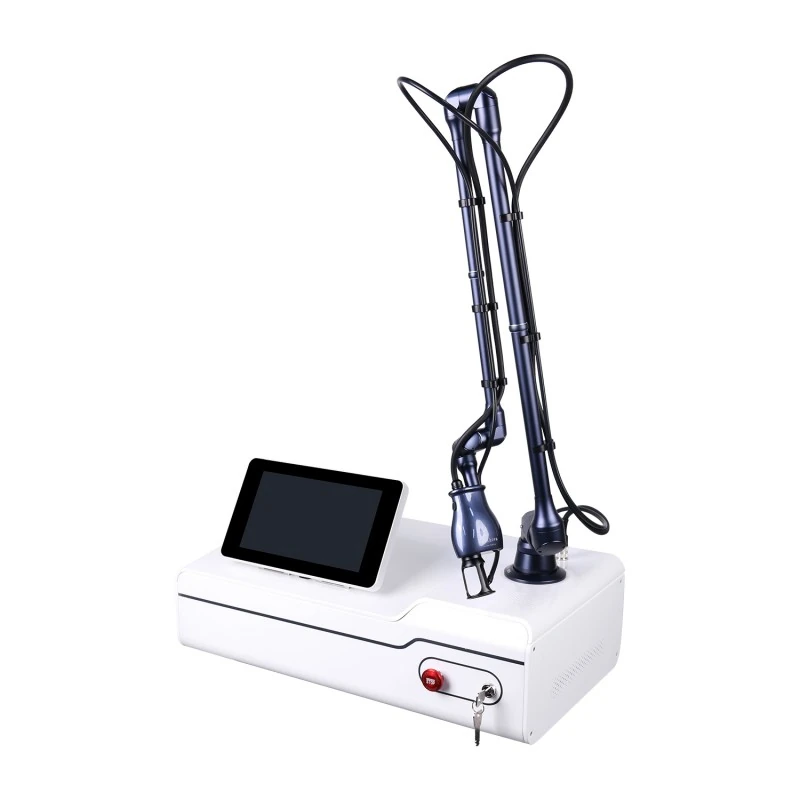

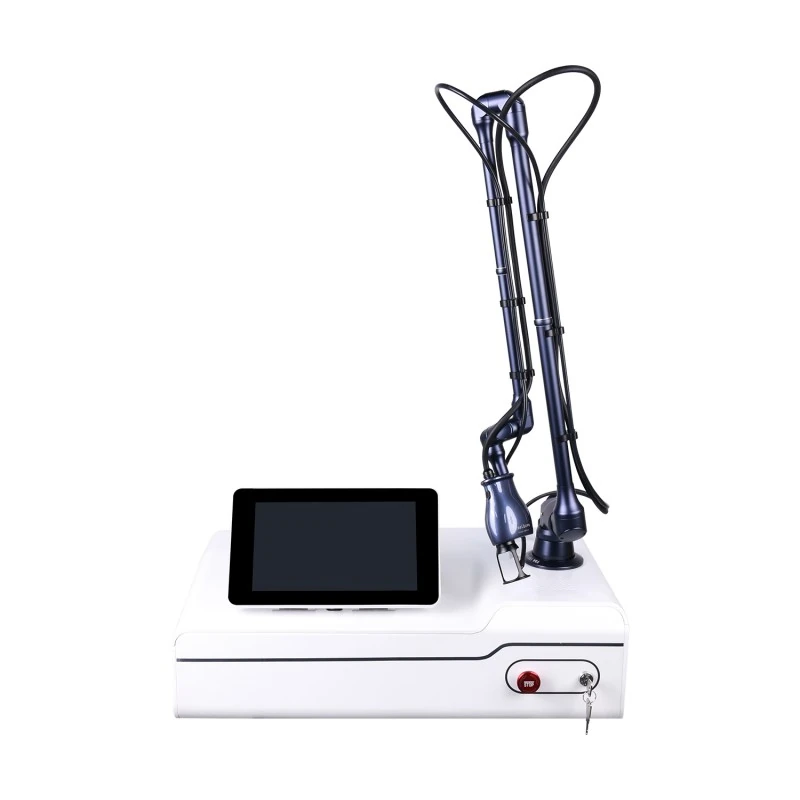

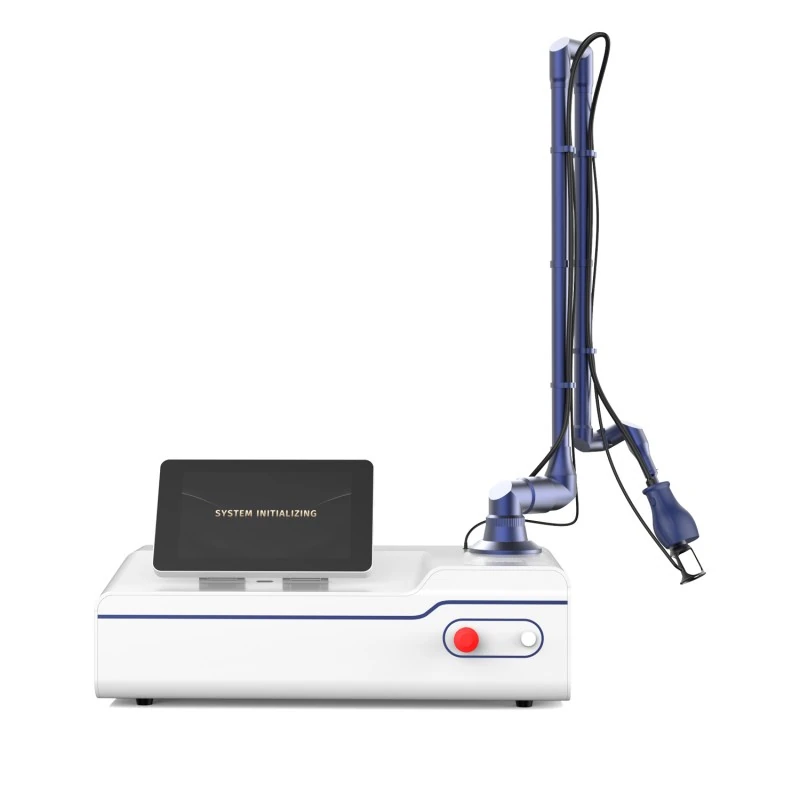

Advanced Portable RF Fractional CO2 Laser Machine for Skin Resurfacing & Vaginal Tightening
CE Certified Fast Shipping 2 Year Warranty
Equipped with a premium 1-60W RF Metal Tube, this portable fractional CO2 laser (10,600nm) delivers unparalleled precision for clinical skin resurfacing, scar removal, and gynecological treatments. By utilizing the focused photothermal effect, it promotes rapid collagen regeneration with minimal downtime.
● Premium Technology: RF-excited metal tube ensures stable energy output and a much longer lifespan compared to traditional glass tubes.
● Dual Capabilities: Includes comprehensive fractional/pulse functions for the skin, plus a specialized vaginal tightening mode.
● Precision Control: Adjustable scanning areas from 0.10.1mm up to 2020mm via a 10.1-inch color touch screen.
● Smart & Portable: Compact design (Metal+ABS shell) ideal for modern aesthetic clinics and fast ROI.
The RF-excited fractional CO2 laser operates on the principle of focused fractional photothermolysis. Utilizing a high-quality radiofrequency (RF) metal tube, the system generates a stable and highly precise laser beam at a wavelength of 10.6μm (10,600 nm). The focal photothermal effect acts directly on the skin, especially penetrating the dermis layer. Instead of causing widespread tissue damage, it creates multiple three-dimensional cylindrical micro-thermal injury zones. The undamaged normal tissue surrounding each treated area acts as a healing reservoir, prompting the skin to initiate rapid repair procedures. This stimulates a profound cascade of epidermal regeneration, tissue repair, and collagen rearrangement, enabling rapid local healing and ultimate skin renewal.
Advanced Working Principle & Core Technologies

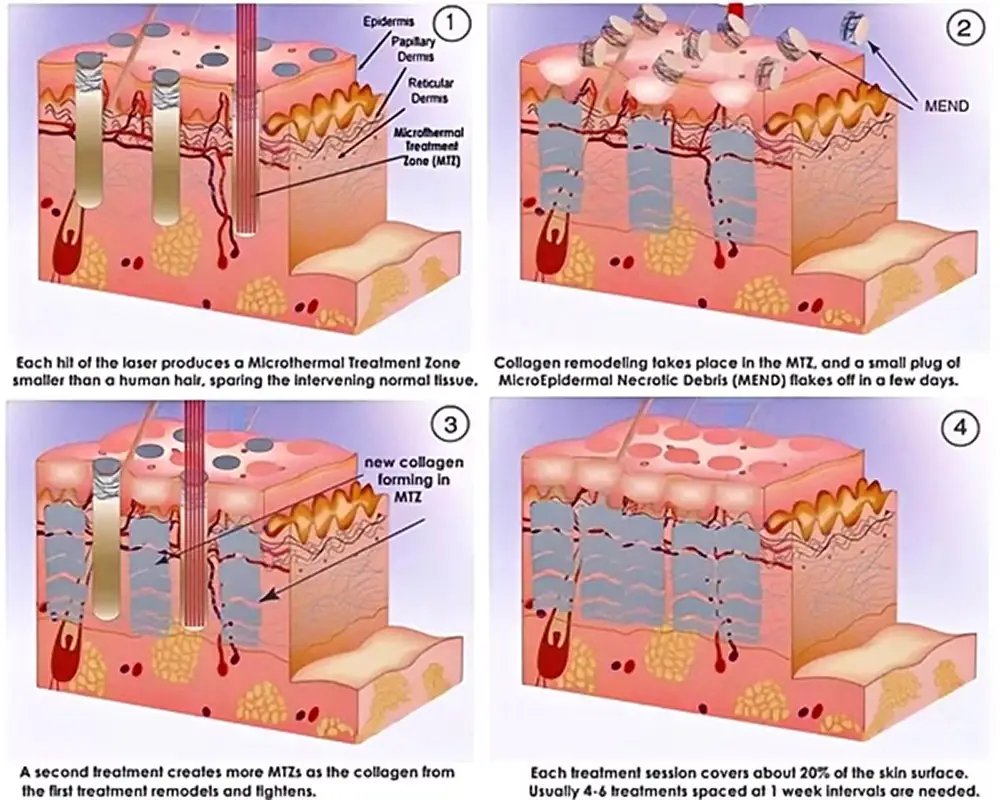

Driven by a high-end radiofrequency (RF) energy source, the RF generator excites a gas mixture (CO₂, N₂, He) within a sealed optical cavity. The laser beam is then split by an optical scanner into a grid-like array of microscopic focal points, creating Microscopic Treatment Zones (MTZs)—narrow, columnar zones of vaporized tissue surrounded by intact healthy skin.
Key Mechanisms of Action
Targeted Ablation & Heating: The 10,600nm laser energy is highly absorbed by intracellular and extracellular water, resulting in localized, precise tissue vaporization in both the epidermis and dermis.
Collagen Remodeling: The controlled thermal injury forcefully stimulates neocollagenesis (new collagen production), collagen contraction, and the dramatic reorganization of collagen fibers.
Preserved Skin Bridges for Rapid Healing: Because the untreated tissue between the MTZs remains completely intact, it enables rapid epidermal migration, accelerating the healing process with minimal clinical downtime.
Deep Dermal Renewal: By penetrating to specific, adjustable depths (based on MTZ density and energy levels), the laser effectively promotes deep dermal regeneration, dramatic scar remodeling, and visible skin tightening.
Key Features & Advantages
High-End RF Metal Tube: Unlike fragile glass tubes, the RF metal tube provides a uniform spot, incredibly stable energy, and an exceptionally long operational lifespan.
Wide Power Range (1-60W): Offers highly customizable pulse, single pulse, and continuous output modes to treat both superficial pigmentation and deep surgical scars.

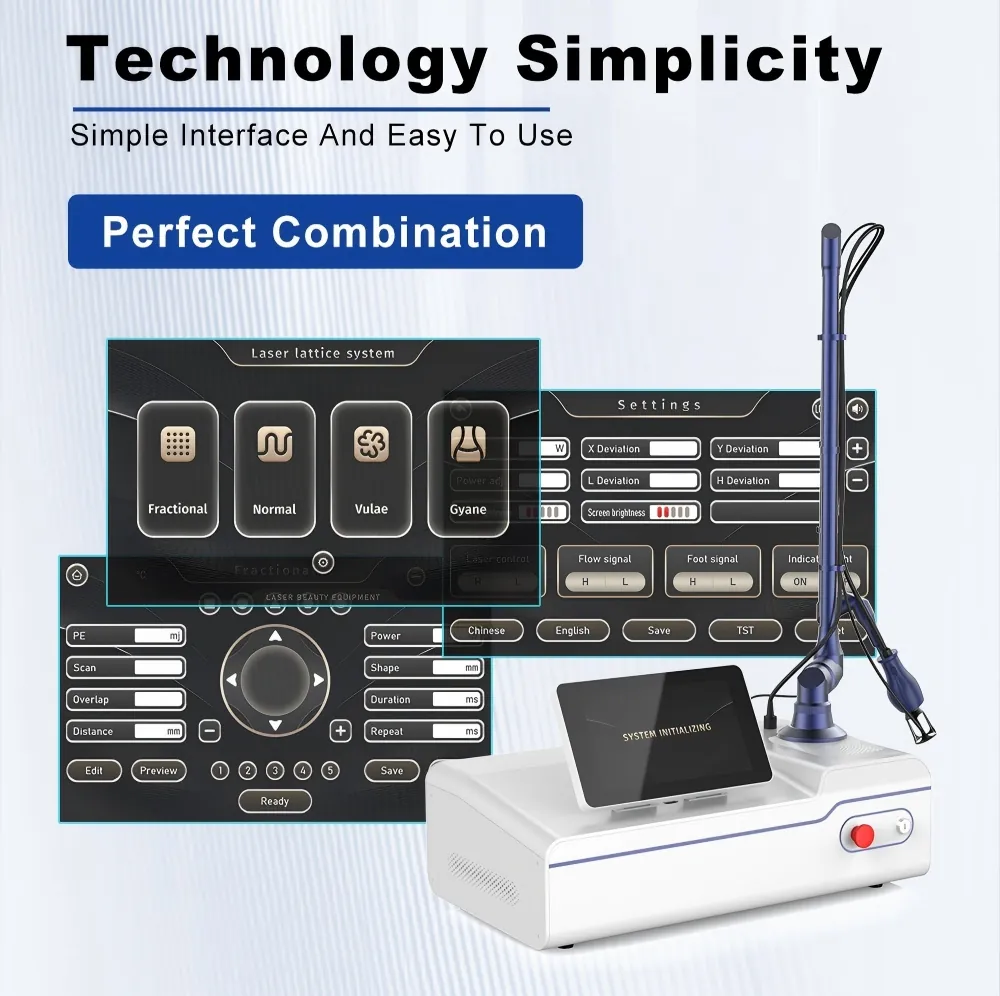

Intuitive 10.1-Inch Touch Screen: An easy-to-navigate color interface that allows practitioners to precisely adjust the scanning area from a micro 0.1.
Durable & Portable Build: Crafted with a premium Metal + ABS shell in an elegant white and light gray finish, combining clinic-grade durability with an easily transportable form factor (Gross Weight: 43KG).
Reliable Cooling System: Forced air cooling guarantees sustained optimal performance during busy clinic hours.
Broad Clinical Applications
This state-of-the-art device comes equipped with specialized treatment modes to address both severe dermatological conditions and comprehensive gynecological health.
1. Fractional and Pulse Function (Skin Resurfacing)
Scar Removal: Highly effective for various severe scars, including surgical scars, burn scars, scald scars, and deep acne scars.
Pigmented Lesion Clearance: Gets rid of intractable freckles, sun spots, age spots, sunburns, and chloasma.
Anti-Aging & Rejuvenation: Removes false and true wrinkles, shrinks enlarged pores, clears nodular acne, and achieves complete facial skin firming.
Beautify & Moisten: Dilutes external pigment for pink labia, increases natural secretion, and eliminates vaginal dryness.
Deep Maintenance: Provides deep cellular rejuvenation, prevents aging, and notably improves intimate sensitivity.
Private Health: Effectively balances the internal PH and significantly improves the internal vaginal environment.
Technical Specifications
Specification
Details
Laser Type
RF Metal Tube CO2 Laser
Laser Wavelength
10.6μm (10600nm)
Laser Power
1 - 60W
RF Frequency
1 MHz
Output Mode
Pulse / Single pulse / Continuous
Maximum Scanning Area
20 * 20 mm
Minimum Scanning Area
0.1 * 0.1 mm
Display Screen
10.1-inch color touch screen
Cooling System
Forced air cooling
Aiming Light
Red semiconductor indicator light (650nm)
Shell Material
Metal + ABS
Appearance Color
White + Light Gray
Supply Voltage
110V - 230V
Machine Dimensions
616 * 342 * 175 mm
Gross Weight (G.W)
43 KG
Package Size
90 * 58 * 31 cm
Frequently Asked Questions (FAQ)
1. Why use an RF Metal Tube instead of a Glass Tube?
An RF (Radio Frequency) Metal Tube represents the highest standard in CO2 laser technology. Compared to traditional glass tubes, it produces a much finer, more uniform laser spot, resulting in less trauma and faster patient recovery. Furthermore, metal tubes boast an immensely longer operational lifespan and highly stable energy output from 1W to 60W.
2. What is the expected downtime after facial scar treatment?
Because the machine uses fractional technology to create Microscopic Treatment Zones (MTZs) while leaving surrounding tissue intact, the healing process is incredibly fast. Patients typically experience redness and mild swelling for 3 to 5 days, with complete epidermal peeling usually resolving within a week.
3. Is the vaginal tightening procedure painful?
No. The vaginal treatment utilizes a specialized non-ablative thermal radiation mode. It gently heats the vaginal mucosa to stimulate collagen restructuring without burning the surface tissue. It is a highly comfortable, non-surgical, and precise procedure with no downtime required.
4. Can the scanning shape and size be adjusted?
Yes. The 10.1-inch color touch screen allows practitioners to easily choose from multiple geometric scanning shapes (such as squares, circles, triangles, and hexagons) and adjust the scanning area precisely from a tiny 0.10.1mm up to a massive 2020mm, providing extreme flexibility for different body areas and lesion sizes.
5. Is this machine suitable for international clinics?
Absolutely. The machine is designed with a universal wide-voltage supply (110V-230V), making it plug-and-play anywhere in the world. Additionally, its portable, desktop-friendly size (616342175mm) makes it an excellent choice for clinics looking to save floor space without compromising on 60W high-power performance.
