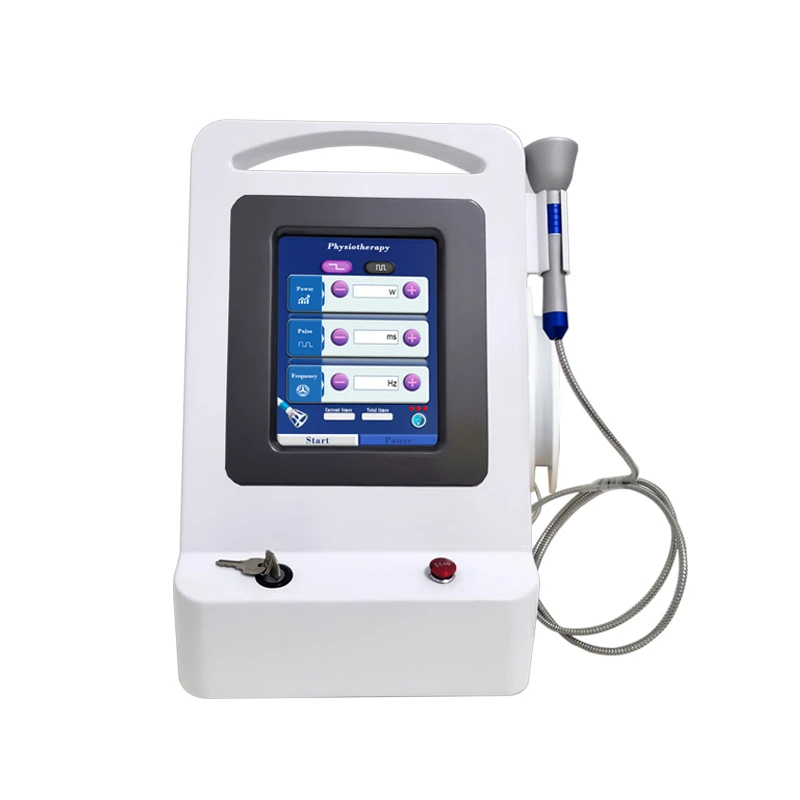

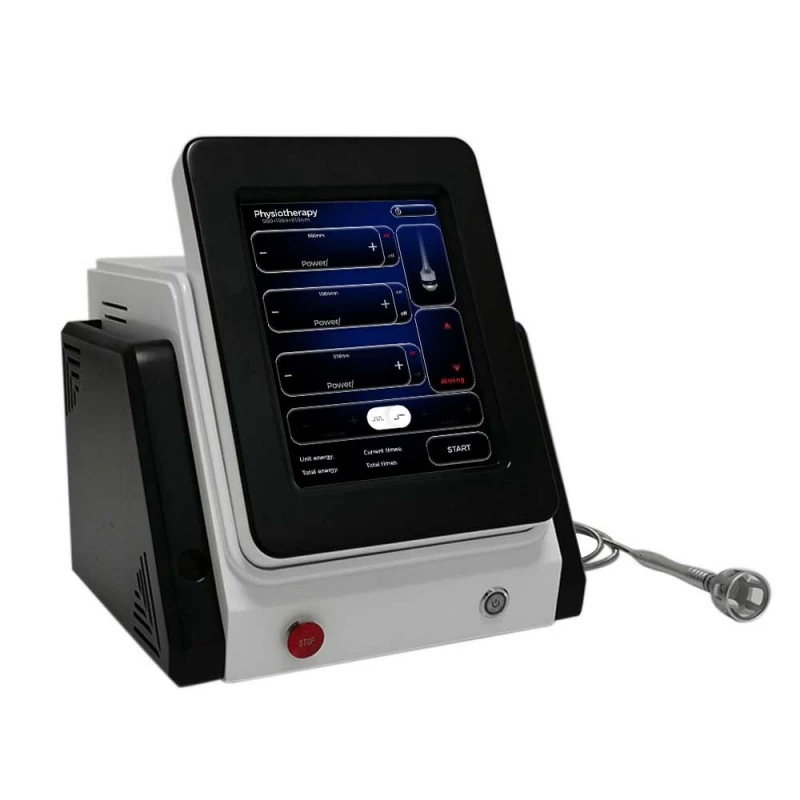

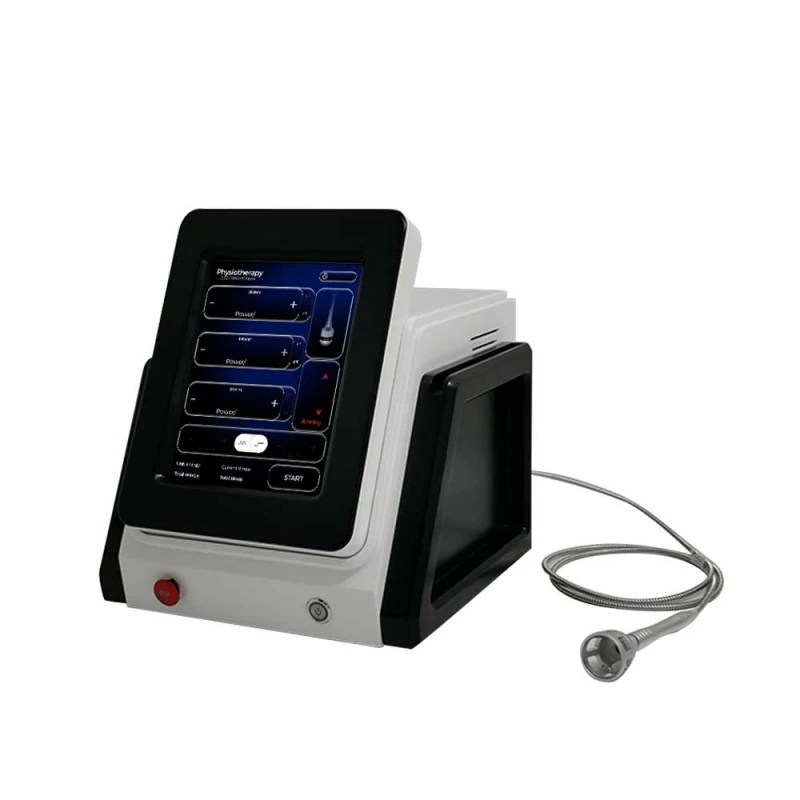

Professional 40W Tri-Wavelength High Intensity Laser Therapy Machine (810+980+1064nm)
CE Certified Fast Shipping 2 Year Warranty
This High Intensity Laser Therapy (HILT) machine utilizes a powerful 40W semiconductor fiber-coupled laser, integrating 810nm, 980nm, and 1064nm wavelengths. By acting within the optimal “therapeutic window,” it dramatically increases cellular ATP production, accelerating tissue repair and delivering profound analgesia. Designed for pain clinics, physiotherapy, and dermatology, it offers unmatched versatility and safety.
Tri-Wavelength Synergy: 810nm + 980nm + 1064nm for uniform energy distribution from surface to deep tissue.
High Power Output: Up to 40W capacity reduces therapy time by more than half.
Maximum Versatility: Includes 3 treatment heads supporting both contact and non-contact modes.
Intelligent Safety: Automatic temperature control instantly stops energy output to prevent burns.
The High Intensity Laser Therapy machine is a cutting-edge medical device that utilizes 810nm, 980nm, and 1064nm semiconductor fiber-coupled lasers. Through precise lens focusing illumination, it generates thermal energy stimulation and profound biological effects on the human body. This non-invasive therapy enhances capillary permeability and activates cellular health, making it highly effective for analgesia, wound healing, and accelerating overall tissue repair. Built with an advanced intelligent temperature control system, the laser energy automatically stops when a specific temperature is reached, ensuring a 100% safe and comfortable experience without the risk of burns.
Advanced Working Principle & Core Technologies
ATP Production & Photobiomodulation
The therapeutic laser operates by stimulating photobiomodulation within the cells. The light energy increases ATP (Adenosine Triphosphate) production—the essential high-energy phosphate compound required for cellular repair. Since injured cells cannot produce ATP at optimal speeds, this targeted laser therapy “recharges” the cells, activating healthier tissues and accelerating the healing process.
The “Therapeutic Window” (Multi-Wavelength)
Therapeutic lasers are defined by their power and wavelength. Our machine utilizes the ideal “therapeutic window” (approx. 650 – 1100 nm) by integrating 810nm, 980nm, and 1064nm. These specific wavelengths are scientifically selected to ensure the absolute uniformity of energy distribution, penetrating effectively from the surface layers down to the deeper musculoskeletal tissue layers.
Advanced Two Modes Operation
The synchronization and integration of different types of Continuous, Pulsed, and Superpulsed sources allow practitioners to intervene directly on both the symptomatology (pain management) and the etiology (root cause) of various diseases.
Single Spot Homogeneous Irradiation
The system uses optically collimated diodes mixed with optical fibers. This advanced optics design implements perfectly homogeneous irradiation on one treatment spot, ensuring stable and reliable energy transfer.
Key Features & Advantages
Powerful 40W Output: The amount of power a laser can safely deliver is crucial. High Intensity Laser ensures an excellent ratio between penetration and absorption in the tissue. The 40W peak power can reduce overall therapy time by more than half compared to low-level lasers (LLLT).
Versatile Treatment Heads (Contact & Off-Contact): While on-contact methods are highly reliable, they are not advisable for broken skin or bony prominences. Our comprehensive delivery solution offers maximum versatility with 3 treatment heads. They provide a range of beam size options, supporting both contact and off-contact modes for patient comfort.
Precision for Small Areas: Clinicians often need to treat smaller, delicate areas such as fingers or toes. The interchangeable heads provide smaller spot sizes specifically designed for localized treatments.
Burn-Free Safety Protocol: Equipped with a built-in temperature sensor, the machine actively monitors skin heat and will automatically halt operation if the threshold is exceeded, avoiding burns completely.
Broad Clinical Applications
This multi-wavelength High Intensity Laser is widely adopted across various medical disciplines:
Pain Clinic & Physiotherapy Provides rapid relief and repair for soft tissue injuries, heel pain, acute lumbar muscle sprains, scapulohumeral periarthritis, stiff neck, tennis elbow, cervical spondylosis, age-related osteoarthritis of the knee, rheumatoid arthritis, and neuropathic pain. (Excellent for wound healing and managing chronic pharyngitis/local infections).
Gynecology & Women’s Health Effectively assists in treating pelvic inflammation, annexitis, dysmenorrhea, vaginal inflammation and pruritus, and mammitis. (Note: Hospital laser pain-relief instruments are highly convenient and non-invasive for private area treatments).
Dermatology & Skin Diseases Accelerates the healing of allergic dermatitis, thromboangiitis obliterans, neurodermatitis, herpes zoster (and post-herpetic neuralgia), erysipelas, bedsores, eczema, and cutaneous pruritus.
General Trauma & Aesthetics Aids in the recovery of swollen tissue, cold-induced tissue injury (frostbite), scalds/burns, acne, alopecia areata, general alopecia, and post-skin transplantation recovery.
Technical Specifications
Specification
Details
Laser Wavelength
810nm + 980nm + 1064nm
Output Power
810nm + 980nm + 1064nm = 40W (OEM Available)
Output Type
Fiber-optic coupling
Pulse Width
15ms — 60ms
Frequency
1 - 9Hz
Operating Modes
Pulse mode, Continuous mode
Aiming Beam
650nm
Operation Interface
8.0-inch Touch Screen
Cooling System
Air cooling
Length of Fiber
2 meters
Input Voltage
AC: 100-240V, 50/60Hz
Net / Gross Weight
5 KG / 13 KG
Machine Dimensions
260mm * 300mm * 410mm
Flightcase Dimensions
400mm * 350mm * 470mm
Language
English or OEM customization
Frequently Asked Questions (FAQ)
1. Why does the machine use three wavelengths (810nm, 980nm, and 1064nm)?
These wavelengths fall perfectly within the optical “therapeutic window” (650-1100nm). Combining them ensures maximum therapeutic efficacy: the 810nm enhances ATP production and cellular oxygenation; the 980nm is heavily absorbed by water for pain relief and thermal effects; and the 1064nm penetrates deepest into the musculoskeletal tissue. Together, they ensure uniform energy distribution from surface layers to deep tissues.
2. Can the laser be used safely over broken skin or bony areas?
Yes. While on-contact treatment is standard, our machine is equipped with 3 versatile treatment heads specifically designed to support off-contact treatment. This is crucial for patient comfort when treating sensitive areas, broken skin, burns, or bony prominences.
3. Is there a risk of burning the patient with a 40W high-power laser?
No, patient safety is fully guaranteed. The device features an intelligent temperature monitoring system. If the local tissue temperature reaches a specific threshold during operation, the laser energy automatically stops. This allows the practitioner to deliver high-power therapy quickly without ever risking patient burns.
4. How exactly does the laser relieve pain and repair tissue?
The laser energy passes through the skin and is absorbed by the cells, causing a biological effect called Photobiomodulation. This stimulates the mitochondria to increase the production of ATP (Adenosine Triphosphate). ATP provides the vital energy that injured cells need to repair themselves, thereby accelerating tissue healing, reducing inflammation, and providing profound analgesia.
