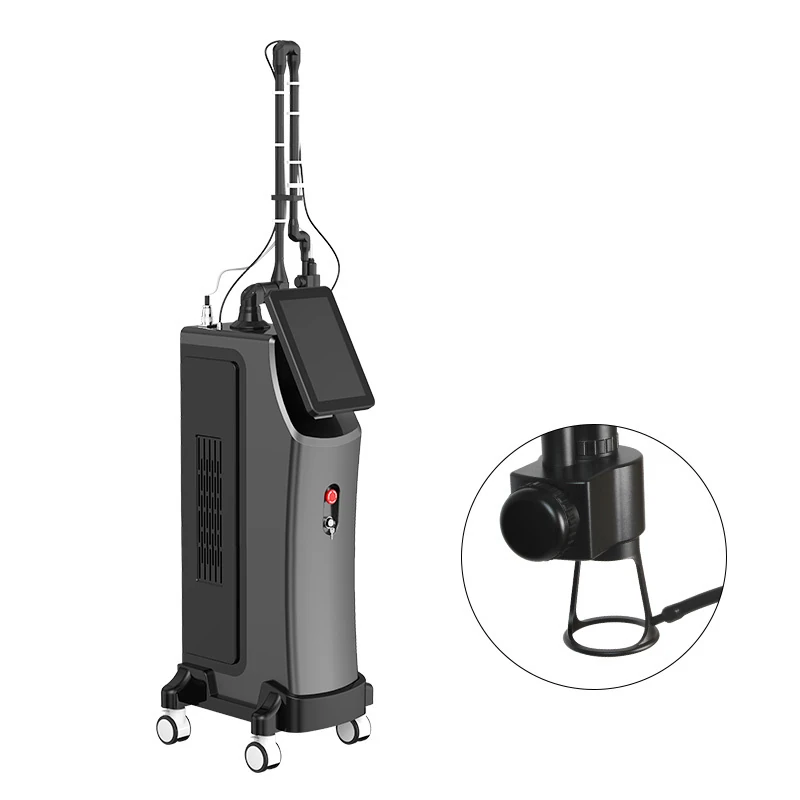

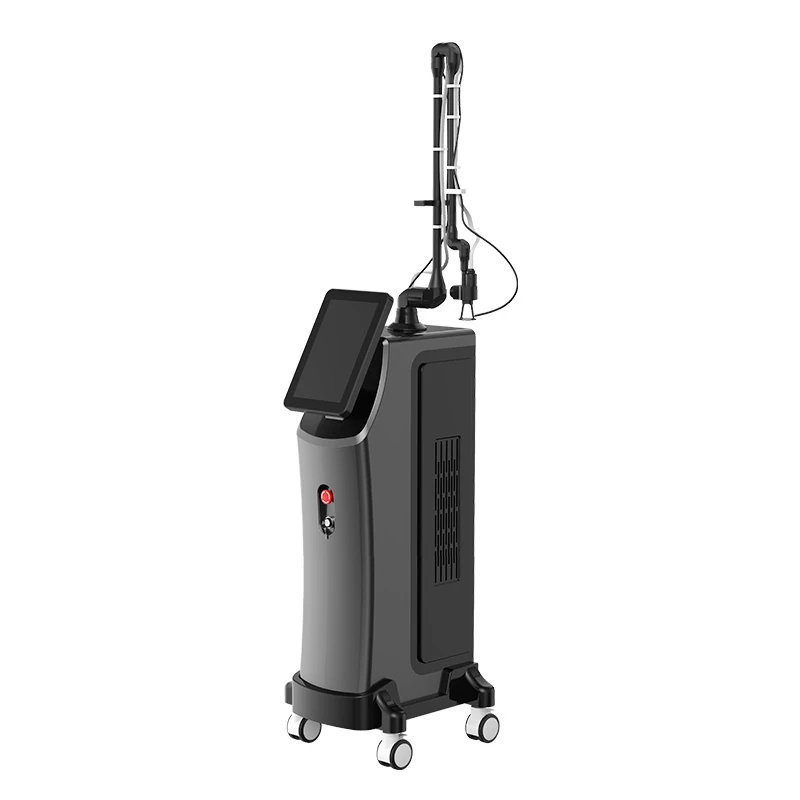

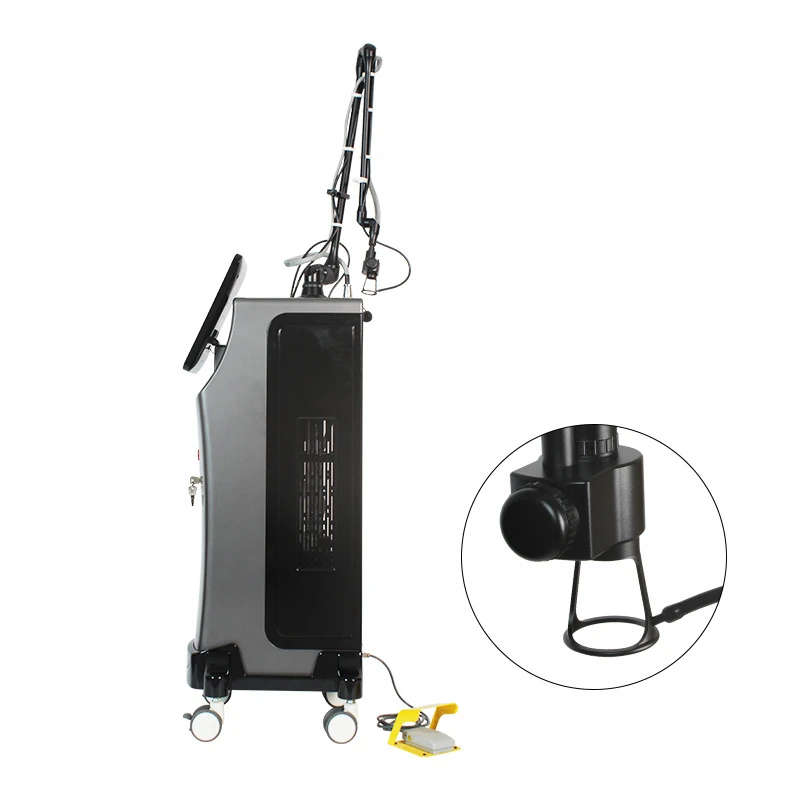

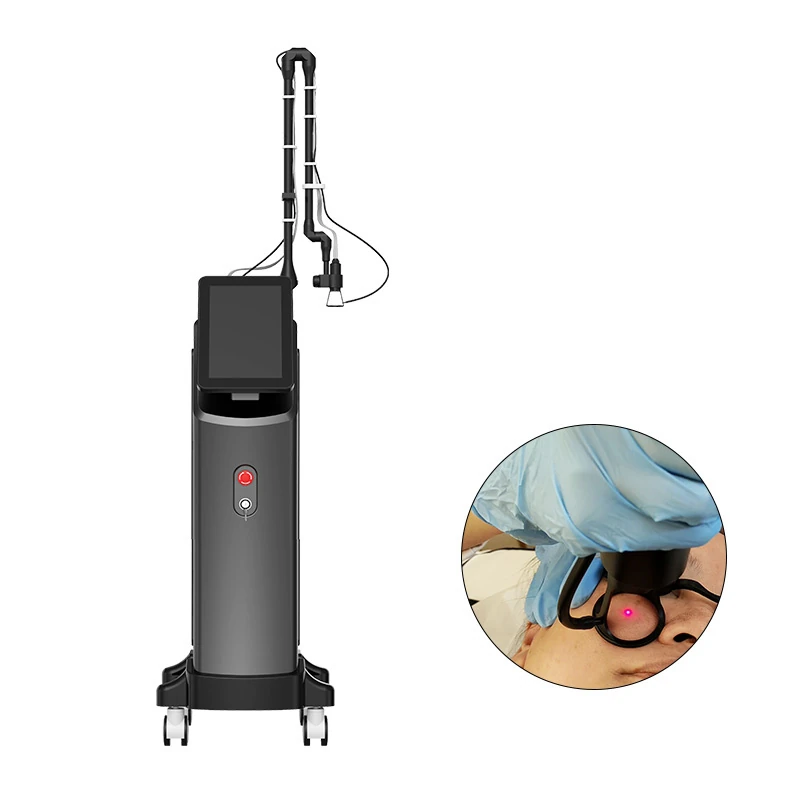

Professional 60W CO2 Fractional Laser Machine for Skin Resurfacing & Intimate Care
Equipped with a high-power 60W sealed-off CO2 laser, this advanced aesthetic system delivers a highly absorbed 10.6μm wavelength for premium skin resurfacing and non-invasive pelvic floor repair. Featuring a premium spring-balanced 7-joint articulated arm, it guarantees extreme precision, higher energy density, and unparalleled clinical outcomes.
● Laser Technology: 10.6μm invisible infrared waveband with a precise red diode aiming beam (650nm).
● Optimal Transmission: Spring-balanced 7-joint articulated arm for 360-degree flexible operation.

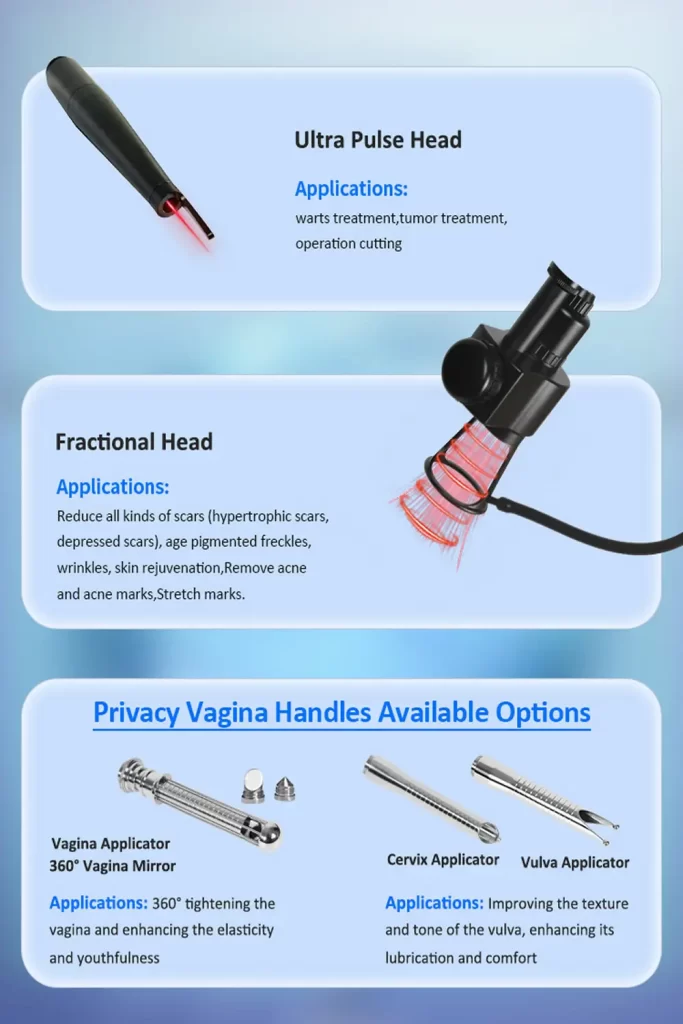

● Dual Applications: Advanced fractional modes for scars/acne, and an exclusive Intimate Laser mode for vaginal tightening.

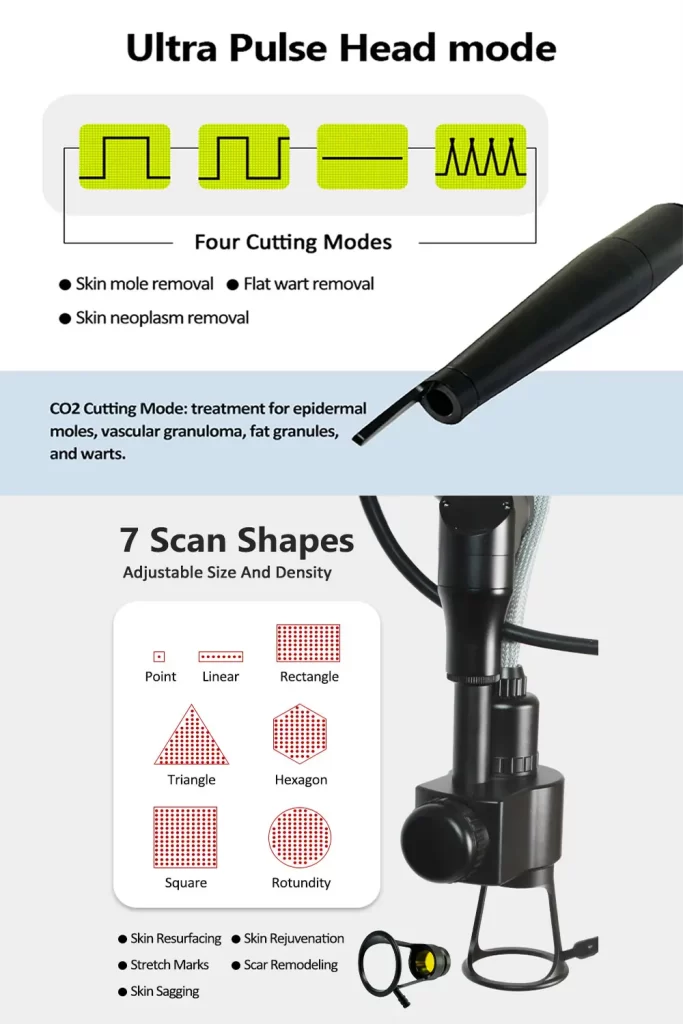

● Smart Interface: 12.1-inch color touch screen with adjustable single, continuous, repeat, and super pulse modes.
- Description
Product Overview
The CO2 fractional laser operates at a precise wavelength of 10.6μm (10600nm), a spectrum that is fully absorbed by human biological tissue, making it safe and highly effective for all skin types. Utilizing a high-performance sealed-off CO2 laser tube, the output laser light is transferred via a highly sophisticated articulated arm. This ensures a superior sense of direction and significantly higher energy density. Because the CO2 laser operates in the invisible infrared waveband, the system incorporates a visible red diode laser (650nm) as an aiming beam, allowing practitioners to clearly and safely see where the treatment beam will impact the target tissue.
Advanced Working Principle & Core Technologies

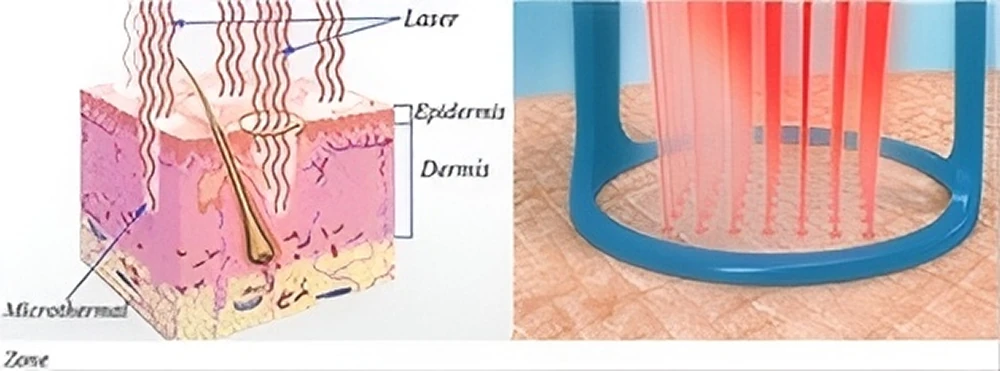

Fractional Skin Resurfacing & Micro Treatment Zones (MTZs)

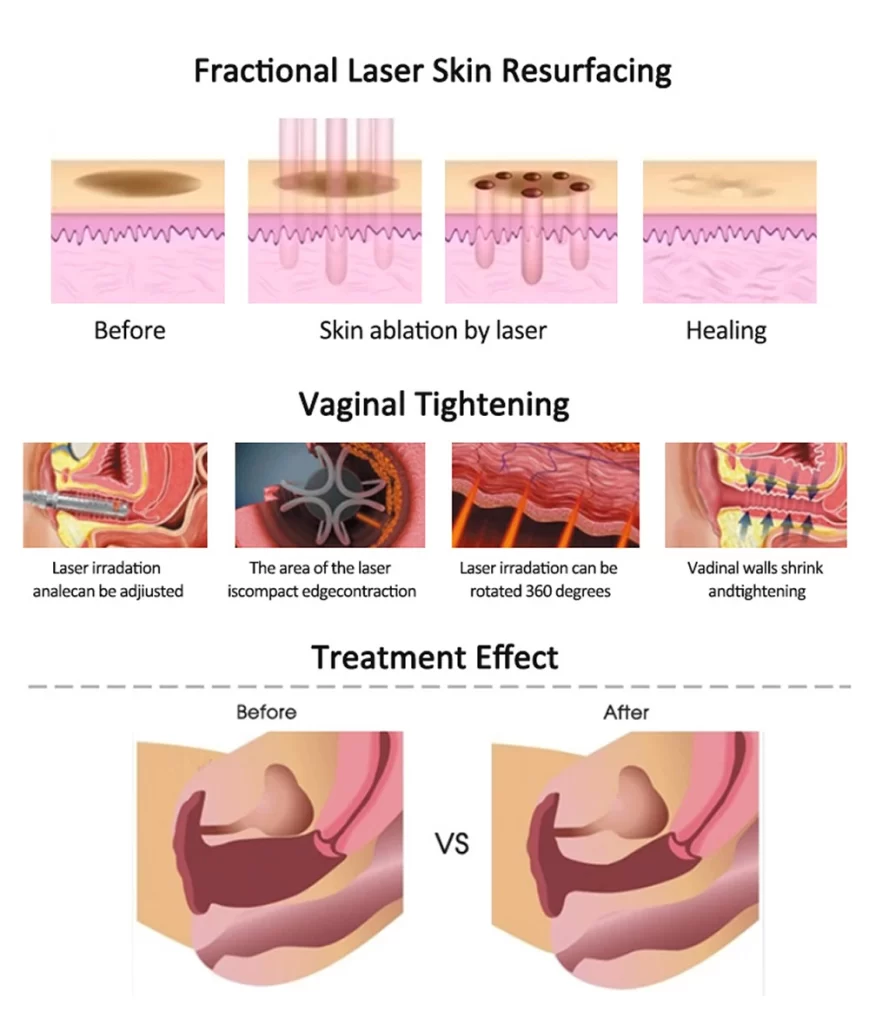

When the laser beam goes through the focus lens, the intense heat instantly gasifies the target tissue. In fractional resurfacing mode, the main laser beam is broken up or fractionated into hundreds of microscopic beams. When they strike the skin surface, they create Micro Treatment Zones (MTZs). Crucially, the small areas of skin between these beams are completely bypassed and left intact. These untreated skin bridges promote rapid healing and recovery with significantly less risk of complications. The deliberate thermal injury in the MTZs forces the skin to initiate a massive repair cascade, promoting profound new collagen production and ultimate facial rejuvenation.
Intimate Laser (Non-Invasive Vaginal Tightening)
The Intimate Laser function is a revolutionary, non-surgical pelvic floor repair technology. Utilizing the micro-pulse stimulation effect of the CO2 laser, it increases local cell oxidation and nutrient delivery. This triggers a large number of fibroblasts to synthesize and secrete massive amounts of new collagen fibers, elastin fibers, and reticular fibers. This profound organic matrix remodeling thickens the vaginal wall, restores elasticity, and activates the female body’s natural repairing ability.
Key Features & Advantages
Broad Clinical Applications
Skin Resurfacing & Aesthetics
Gynecological Intimate Care
Technical Specifications
| Specification | Details |
| Laser Type | Sealed-off CO2 Laser |
| Laser Wavelength | 10.6μm (10600nm) |
| Output Power | 1 - 60W (Adjustable) |
| Working Mode | Single pulse, Continuous pulse, Repeat pulse, Super pulse |
| Input Power | 450VA |
| Transmission System | Spring-balanced 7 joint arms |
| Display Screen | 12.1-inch color touch screen |
| Divergence Angle | 4 mrad |
| Focused Spot Diameter | ≤ 0.4 mm |
| Tool Bit Focus (Focal Length) | F = 100mm (Optional) |
| Pulse Width | 0.1ms - 10ms |
| Aiming Beam | Red diode laser (650nm, 2mW) |
| Cooling System | Closed-loop inside-circle coolant |
| Working Environment Temp. | 5 - 40 ℃ |
| Air Pressure / Humidity | 86 Kpa - 106 Kpa / ＜80% |
| Preheating Time | ＞ 5 min |
| Operational Stability | No electromagnet interrupt, no obvious shaking or airflow |
| Net Weight / Gross Weight | 39 KG / 56 KG |
| Machine Dimensions | 116 cm × 58 cm × 47 cm |
| Laser Arm Package Size | 75 cm × 31 cm × 14 cm |
