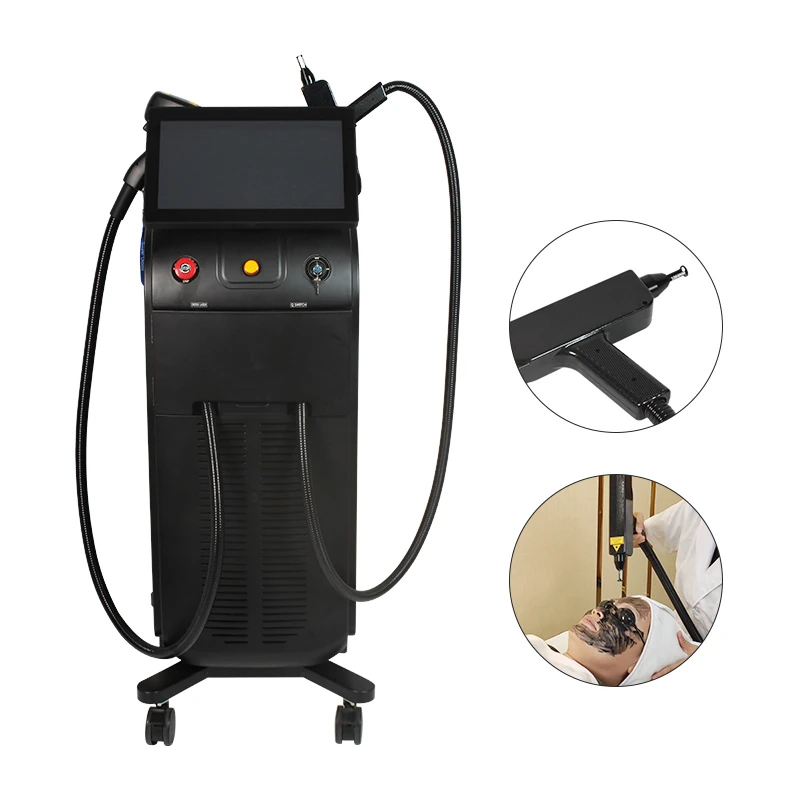

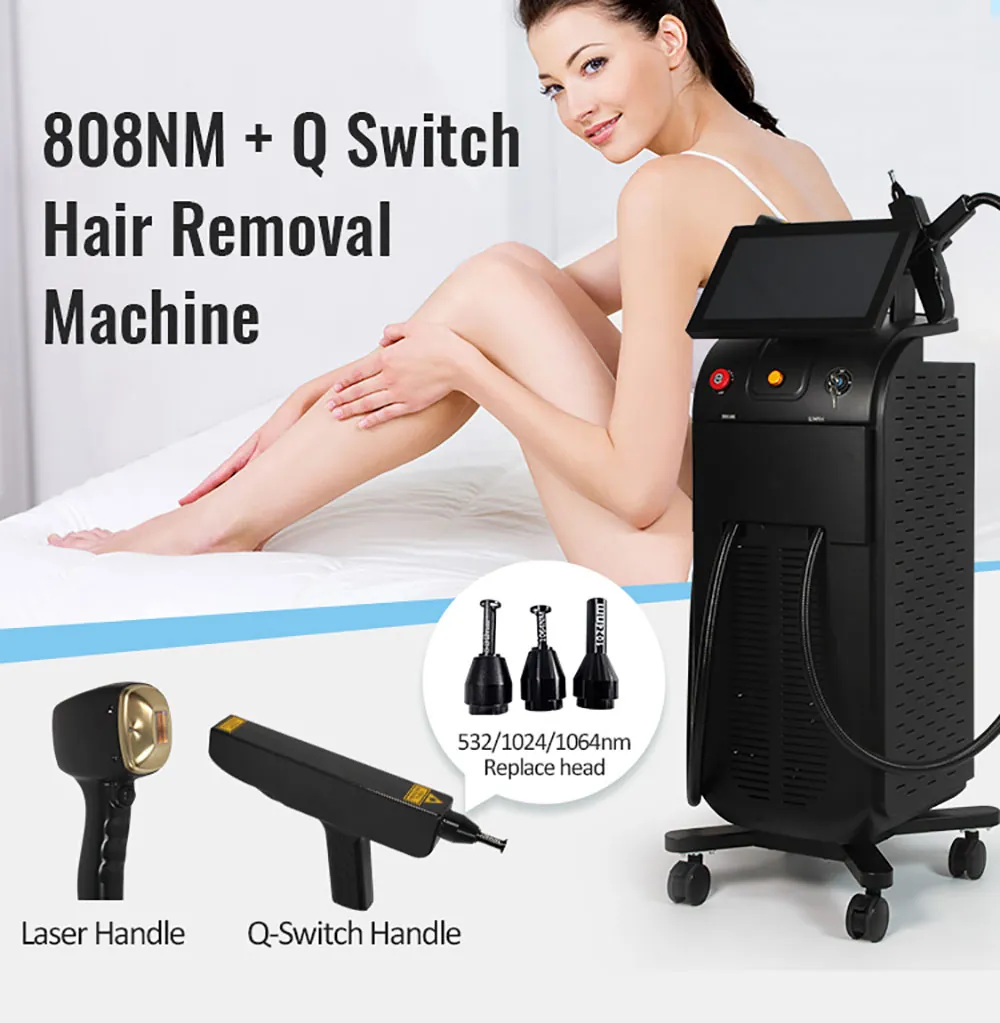

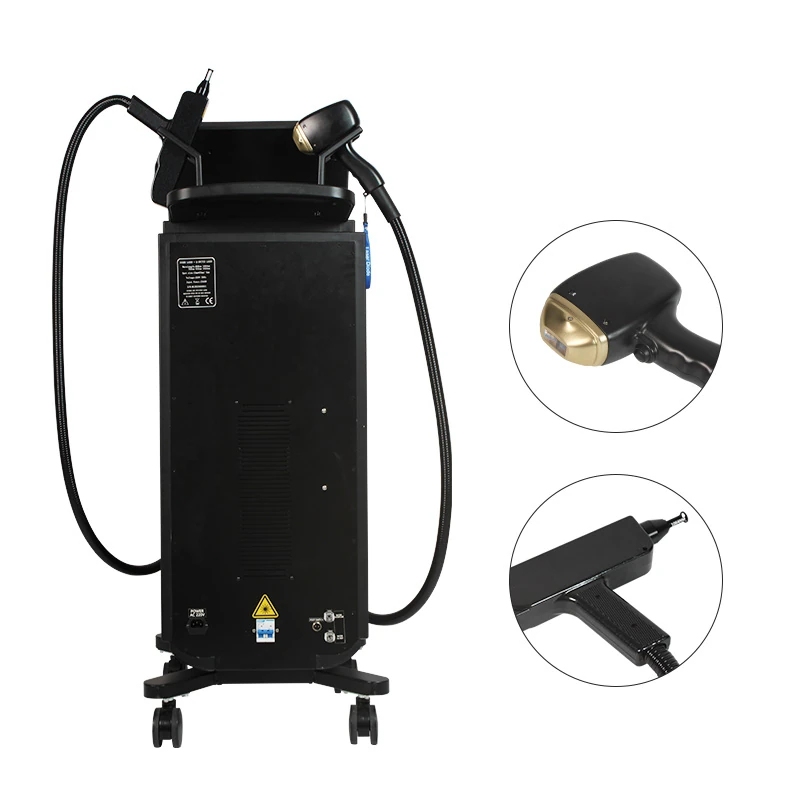

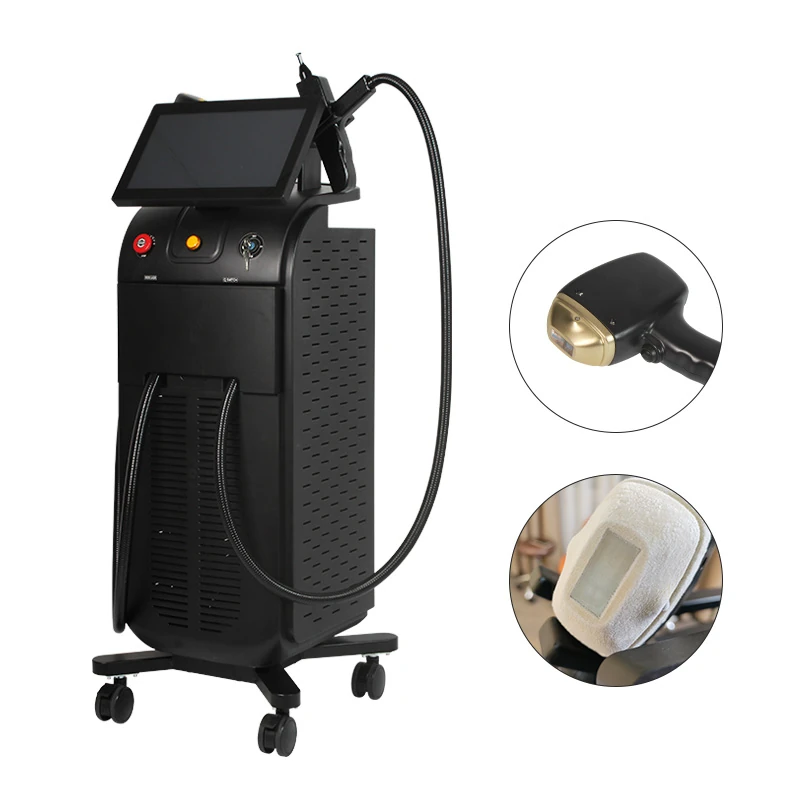

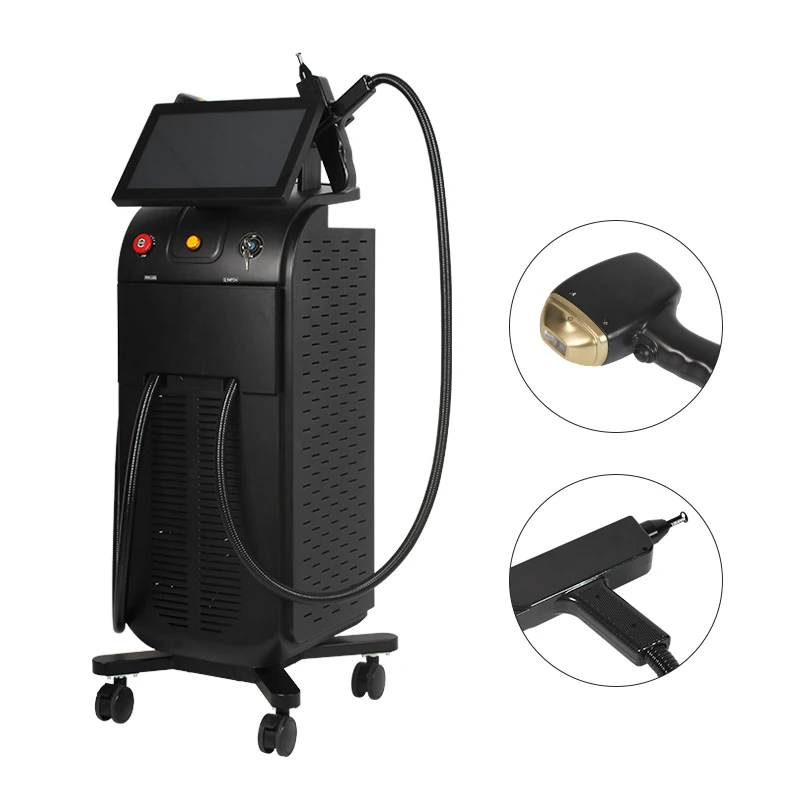

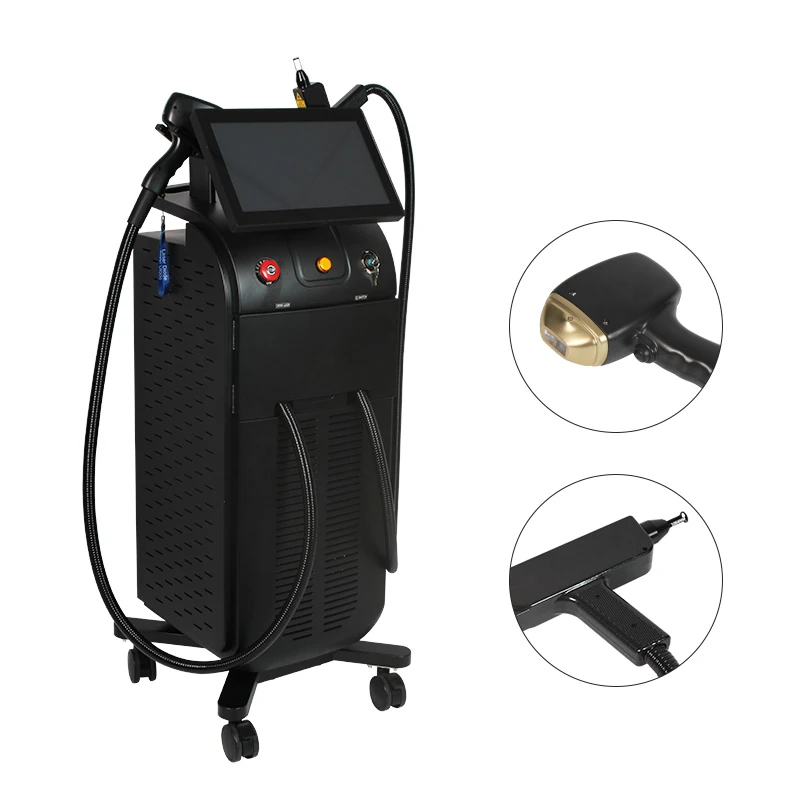

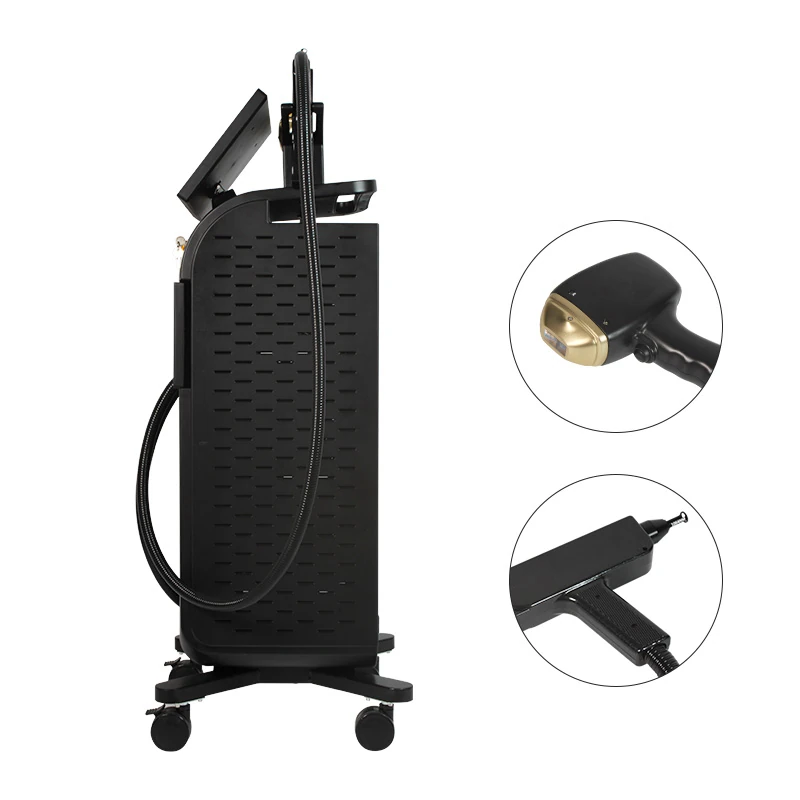

Professional 2-in-1 808nm Diode Laser & Q-Switch Pico Laser Machine (JB-DL01C)
The JB-DL01C is a premium dual-platform aesthetic machine combining an 808nm Diode Laser for permanent hair removal and a Q-Switched Nd:YAG PicoLaser (1064nm/532nm) for tattoo removal and skin rejuvenation. Equipped with a high-power 2500W power supply and an advanced TEC cooling system, it ensures stable output and maximum patient comfort for professional clinics.
● Platform 1: 808nm Diode Laser (1000W laser power, 13mm*40mm large spot size).
● Platform 2: Q-Switch PicoLaser with “Black Diamond” carbon peeling therapy.
● Cooling System: Integrated Water + Wind + TEC electronic cooling.
● Control Center: Intuitive 15.6-inch touch screen for seamless mode switching.
- Description
Product Overview
The JB-DL01C is a state-of-the-art 2-in-1 multifunctional aesthetic workstation designed to maximize clinical efficiency. By integrating ultra-micro semiconductor laser chips for 808nm diode laser hair removal and a Q-Switched PicoLaser system for pigmentation and tattoo removal, this single unit addresses the most highly demanded aesthetic treatments. Featuring a modern design, a massive 15.6-inch touch screen, and a robust 2500W input power supply, it delivers stable output, short exposure times, and exceptionally high safety profiles for all skin types.
Advanced Working Principle & Core Technologies
808nm Diode Laser (Selective Photothermolysis)
The basic treatment principle relies on biological effects. Stacked with ultra-micro semiconductor laser chips, the 808nm wavelength is highly absorbable by colored hair follicles without damaging the surrounding epidermal tissue. The emitted light energy is absorbed by the pigment within the follicle and converted into heat. Once the temperature reaches a critical level, the hair follicles are irreversibly damaged and subsequently cleared through the body’s natural metabolism, achieving permanent hair removal.
Q-Switch PicoLaser & “Black Diamond” Rejuvenation
The Q-Switch system operates on the principle of selective absorption. It offers a specialized “Black Diamond” (Carbon Peeling) therapy where biological nano-carbon powder is applied to the skin. The laser energy is completely absorbed by the carbon, minimizing epidermal damage while driving thermal energy deep into the dermis. This stimulates collagen albumen reorganization, accelerates aging cell metabolization, and cracks redundant facial fattiness, restoring the skin to a younger, tighter state.

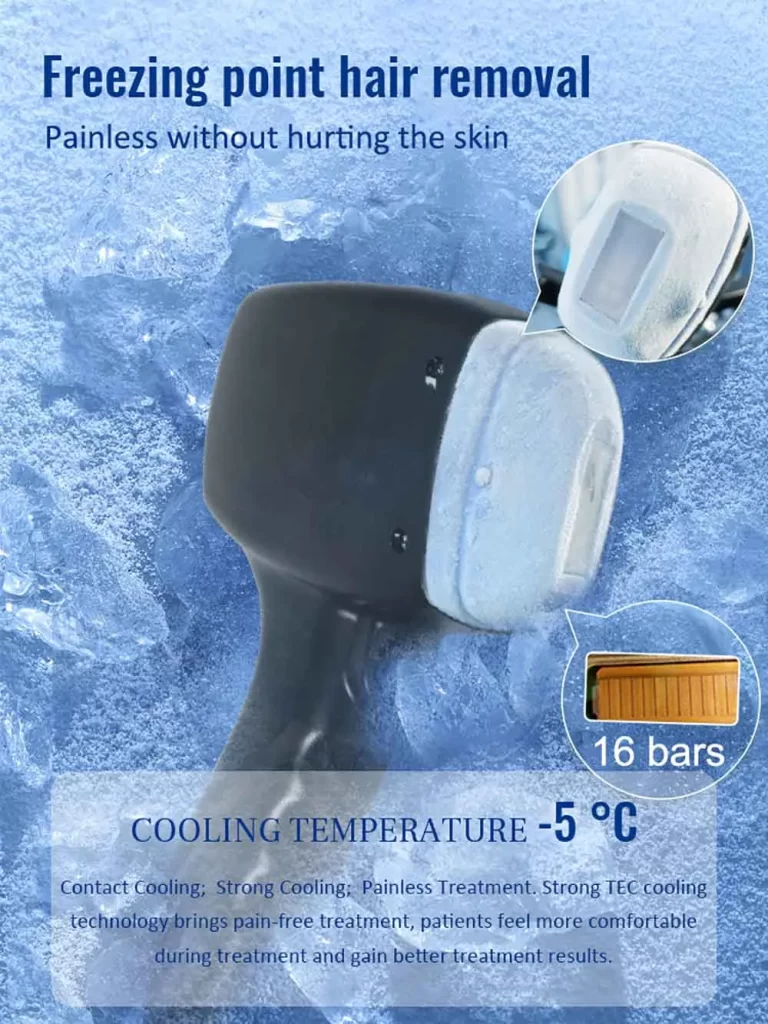

Advanced Triple Cooling Technology
Continuous and stable energy delivery is guaranteed by an industry-leading cooling mechanism combining Water cooling + Wind cooling + TEC electronic cooling. This ensures the diode temperature remains optimally between 0 – 30 degrees, protecting the skin and enabling painless treatments.
Key Features & Advantages
Broad Clinical Applications

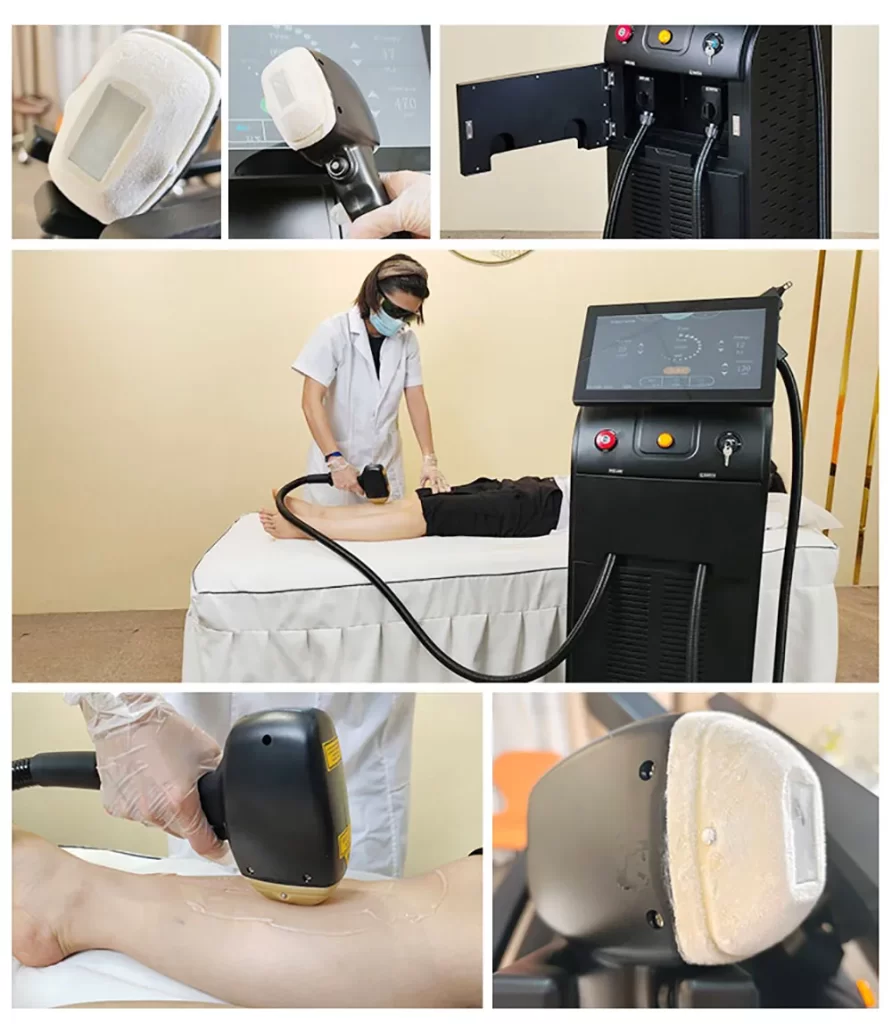

Permanent Hair Removal (808nm Diode Laser)

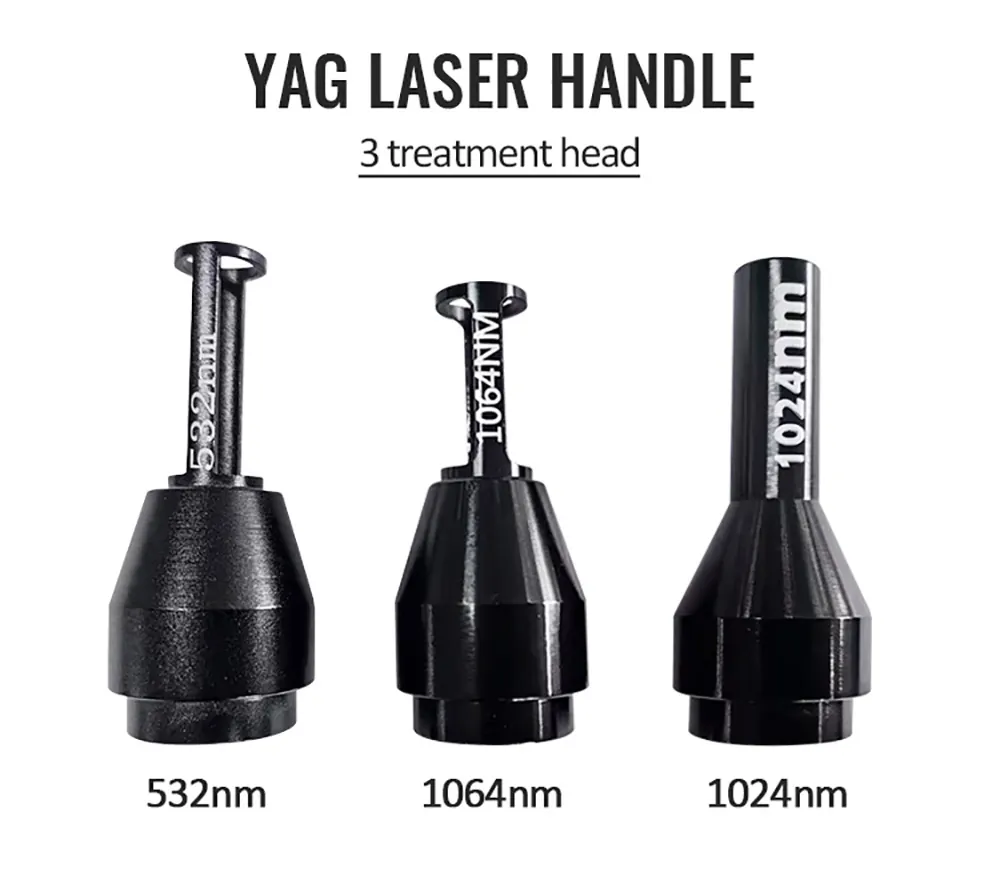

Pigmentation & Tattoo Removal (Q-Switch 1064nm / 532nm)
Skin Rejuvenation & Tightening
Technical Specifications
| Function | Diode Laser +Q Switch |
| Mode | Pulse Mode |
| Input Power | 2500W |
| Screen | 15.6inch touch screen |
| Diode Laser | Wavelength |
| Laser Power | 1000W |
| Spot Size | 13mm*40mm |
| Temperature | 0 - 30 degree |
| Energy Density | 1-100J/cm2 |
| Pulse Width | 20-500ms |
| Frequency | 1-10Hz |
| Q-Switch | Wavelength |
| Output Power | 200 - 2000mJ |
| Spot Size | 19mm*19mm |
| Pulse Width | ≤10ms |
| Frequency | 1-10Hz |
| Cooling System | Water cooling+ Wind cooling+ TEC electronic cooling |
| Voltage | AC220V±10% 15A 50-60HZ, 110v±10% 25A50-60HZ |
| Package Size | 135cm *65cm*63cm |
