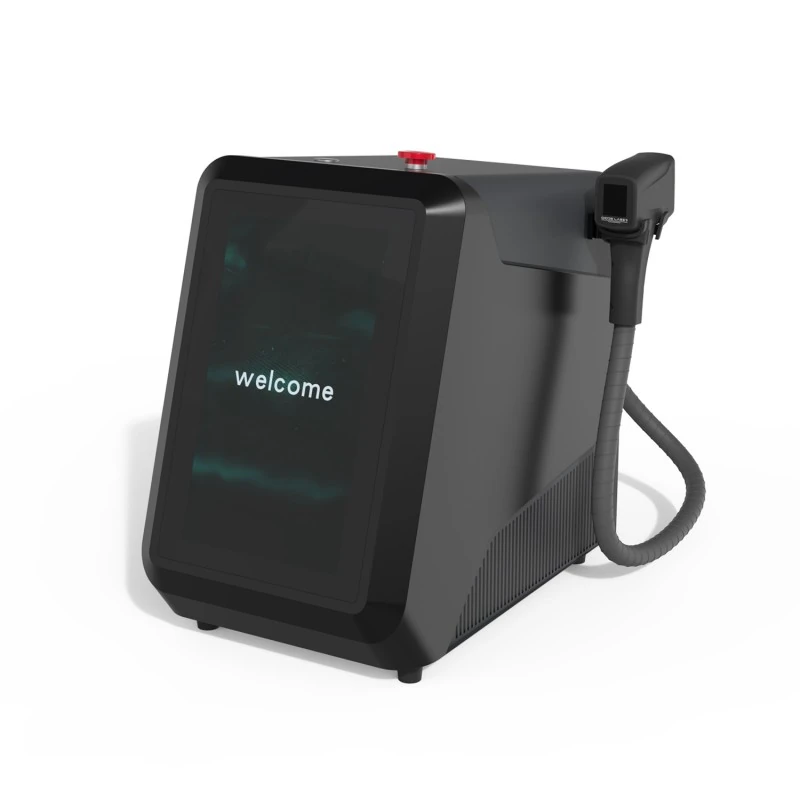

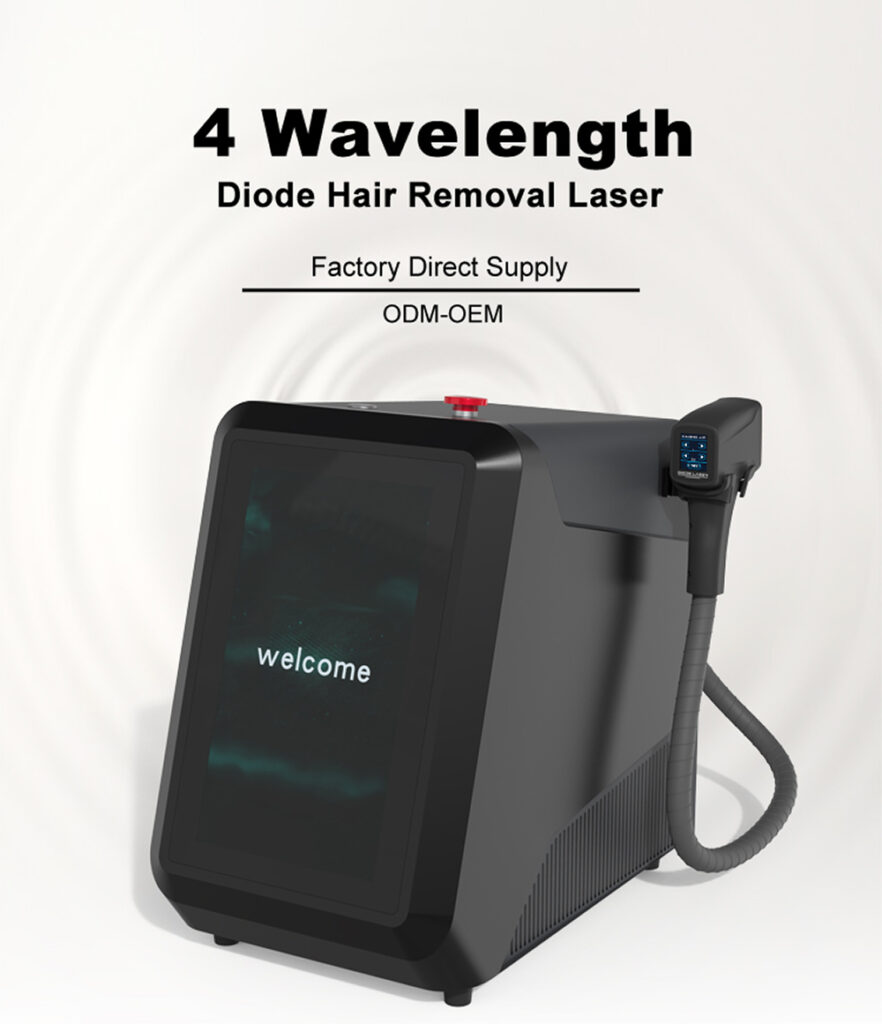

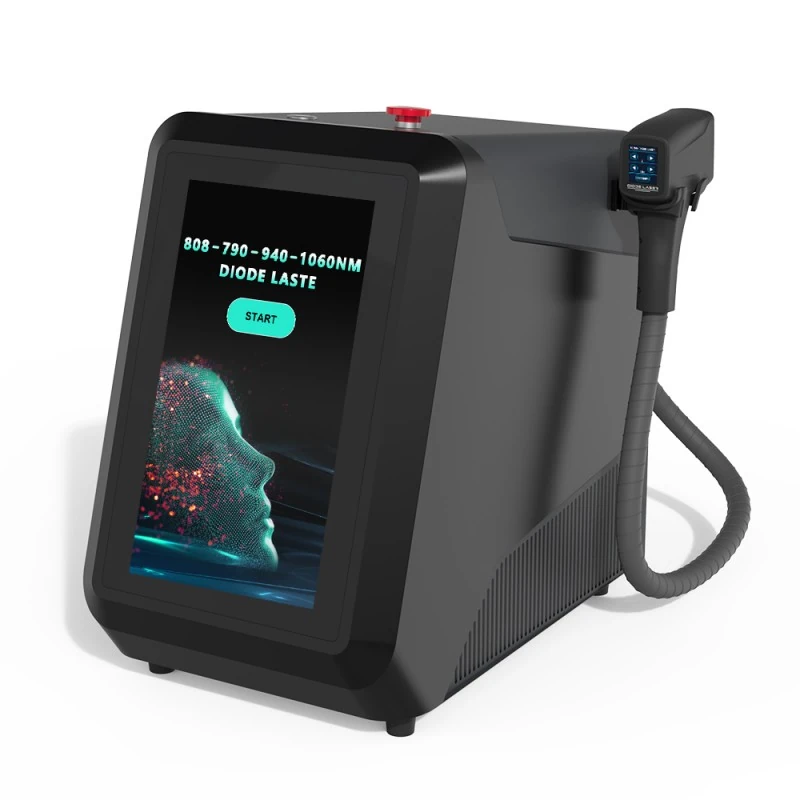

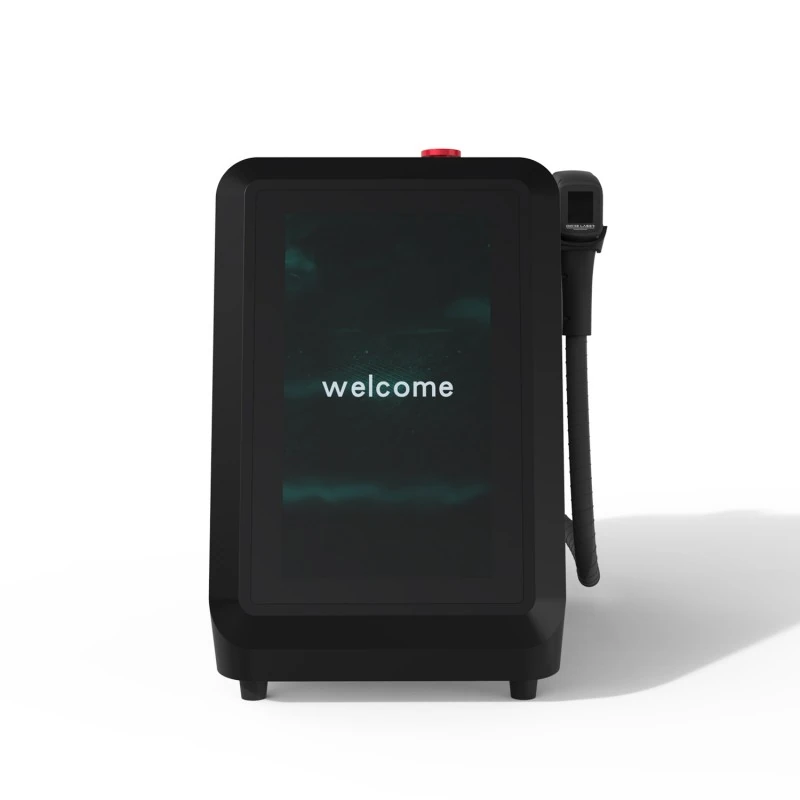

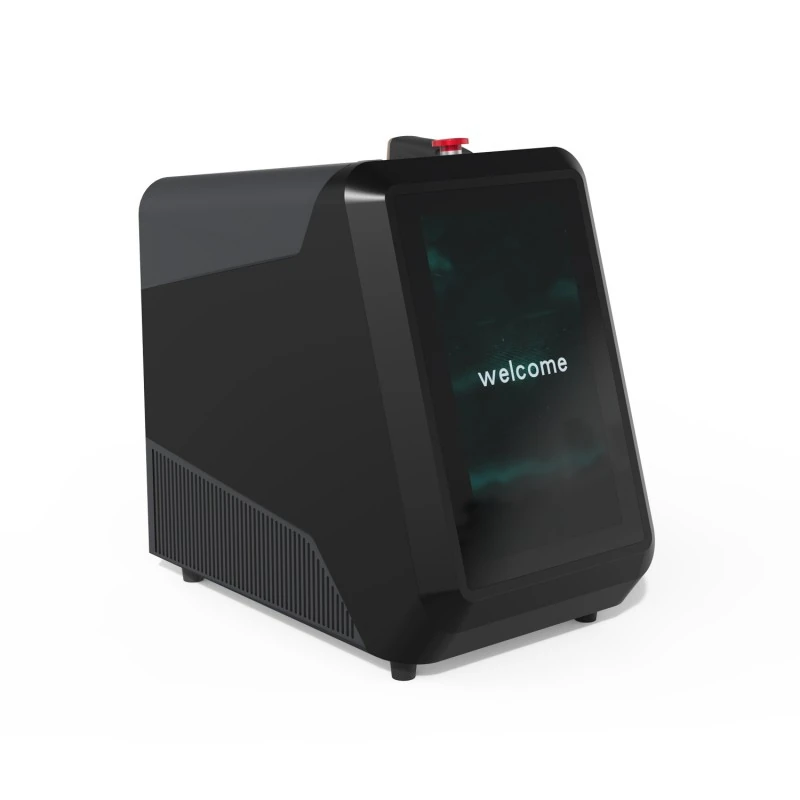

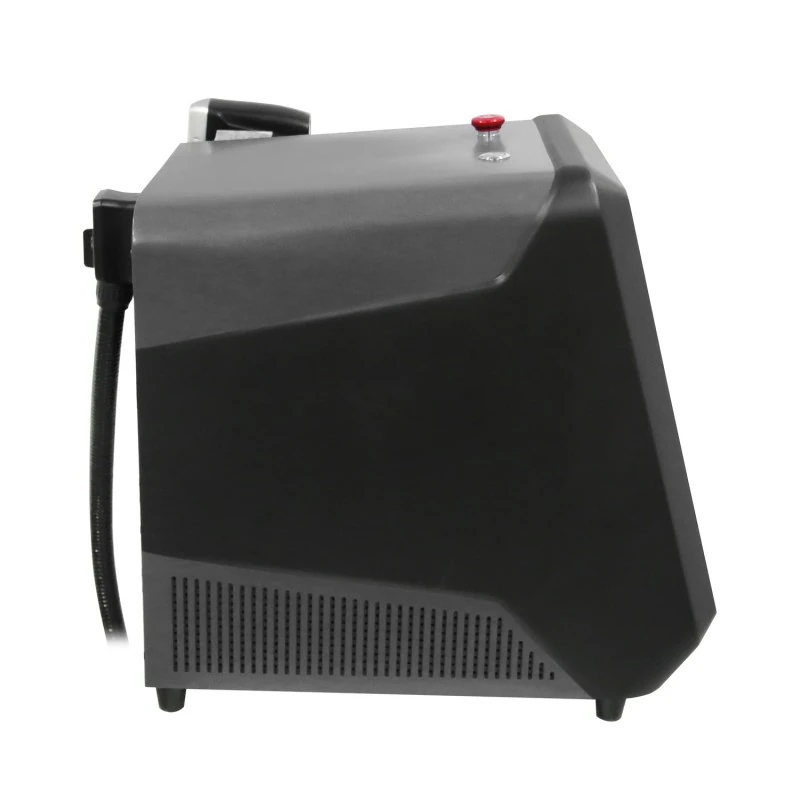

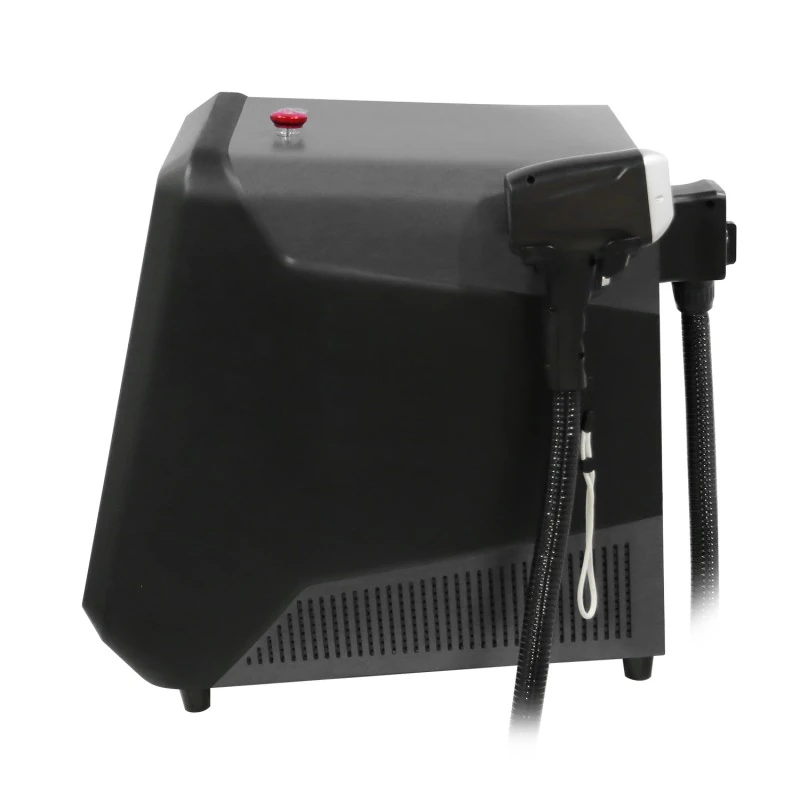

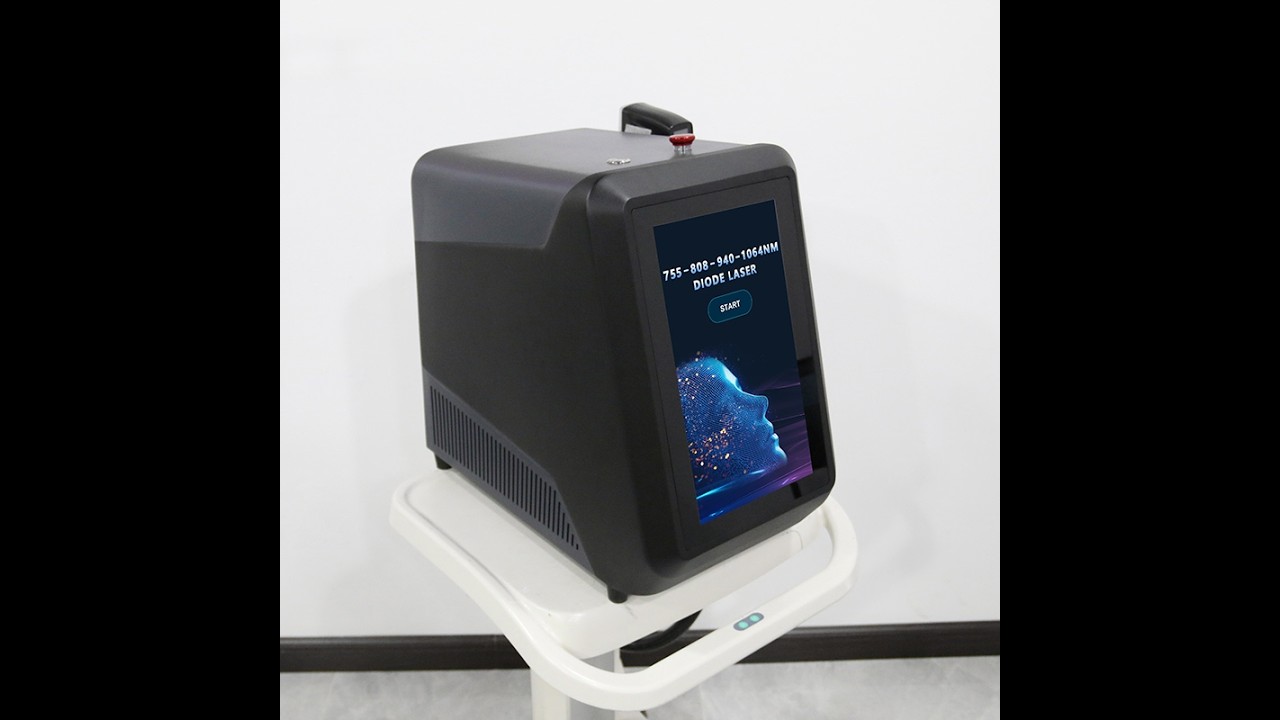

Advanced 4-Wavelength Diode Laser Hair Removal Machine (790nm/808nm/940nm/1064nm)

CE Certified Fast Shipping 2 Year Warranty

This professional multi-wavelength diode laser system delivers permanent, painless hair removal for all skin tones (Fitzpatrick I-VI). Equipped with premium USA-imported laser bars and an advanced Contact Sapphire TEC Cooling system, it ensures a 50-million pulse lifespan and 24/7 continuous operation.
● 4 Intelligent Wavelengths: 790nm, 808nm, 940nm, and 1064nm for all hair colors and skin types.
● Ultra-High Peak Power: 100W per bar (Options available in 500W / 1000W / 1200W / 1600W).
● Ultimate Comfort: Constant handle temperature down to -6ºC with sapphire freezing technology.
● Smart Interface: 15.6-inch main screen + LCD handle display with customized parameters for gender, 8 body parts, and 6 skin tones.

Chat on WhatsApp

Advanced 4-Wavelength Diode Laser Hair Removal Machine (790nm/808nm/940nm/1064nm)

Description

Product Overview

This state-of-the-art multi-wavelength diode laser system is the ultimate solution for permanent hair removal across all skin tones. Utilizing the principle of selective photothermolysis, the laser deeply targets hair follicles to destroy them at the root. The machine dynamically integrates four distinct wavelengths (790nm, 808nm, 940nm, and 1064nm) combined with intelligent wavelength selection. This tailored approach ensures maximum efficacy and absolute safety for all Fitzpatrick skin types (I-VI), while the integrated sapphire cooling technology protects the epidermis, delivering a highly comfortable and painless treatment experience.

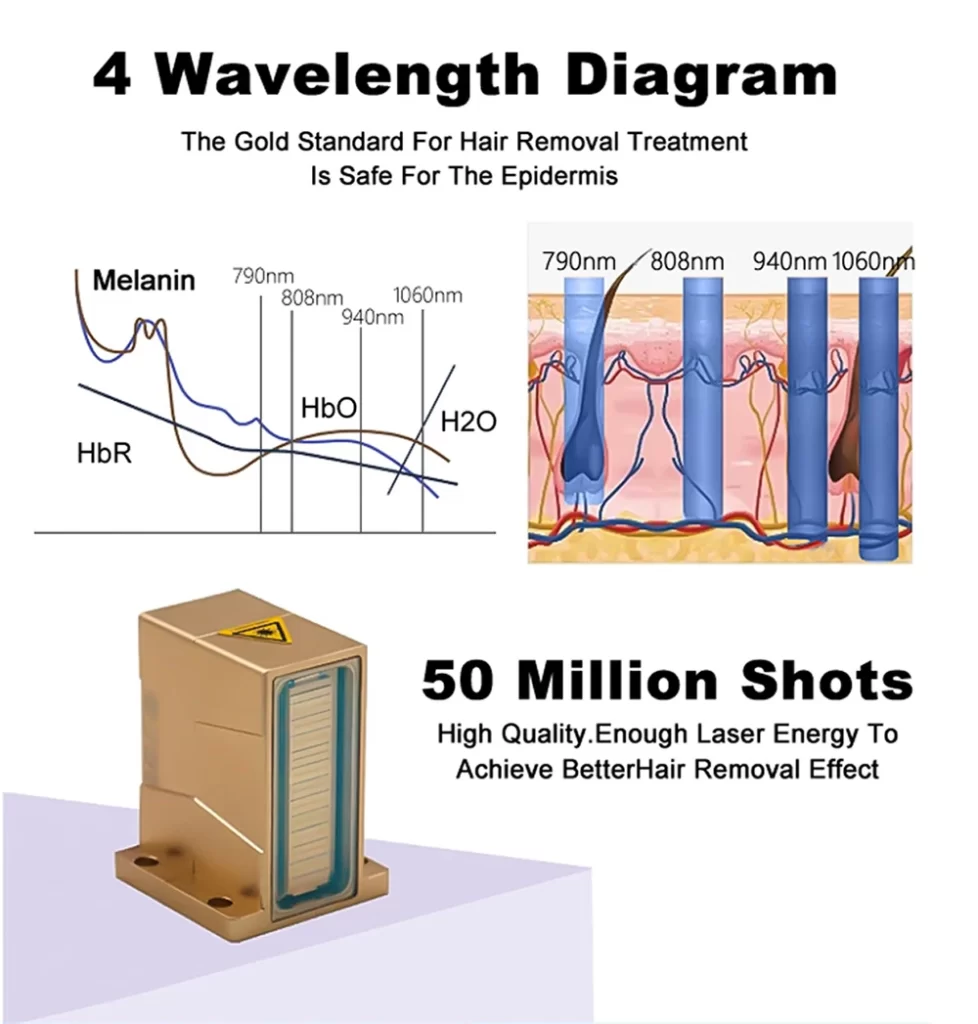

Advanced Working Principle & Core Technologies

By combining four highly effective laser wavelengths into a single innovative applicator, this machine targets different tissue depths and anatomical structures within the hair follicle:

790nm (Equivalent to 755nm Alexandrite)

Offers the most powerful energy absorption by the melanin chromophore. It targets the bulge of the hair follicle, making it highly ideal for superficially embedded hair, as well as light-colored and thin hair.

808nm (The Golden Standard)

The classic and most widely used wavelength in laser hair removal. It offers deep penetration into the hair follicle with high average power and a rapid repetition rate, suitable for treating the vast majority of skin and hair types quickly.

940nm (Vascular Targeting)

Provides superior absorption by oxyhaemoglobin, causing coagulation in the microvessels that feed the hair root. Its moderate penetration depth and low melanin absorption make it exceptionally safe and effective for treating dark skin phototypes.

1064nm (Nd:YAG Equivalent)

Characterized by the lowest melanin absorption and the deepest tissue penetration. It focuses entirely on targeting the bulb and papilla, making it the perfect solution for the darkest skin types.

Key Features & Advantages

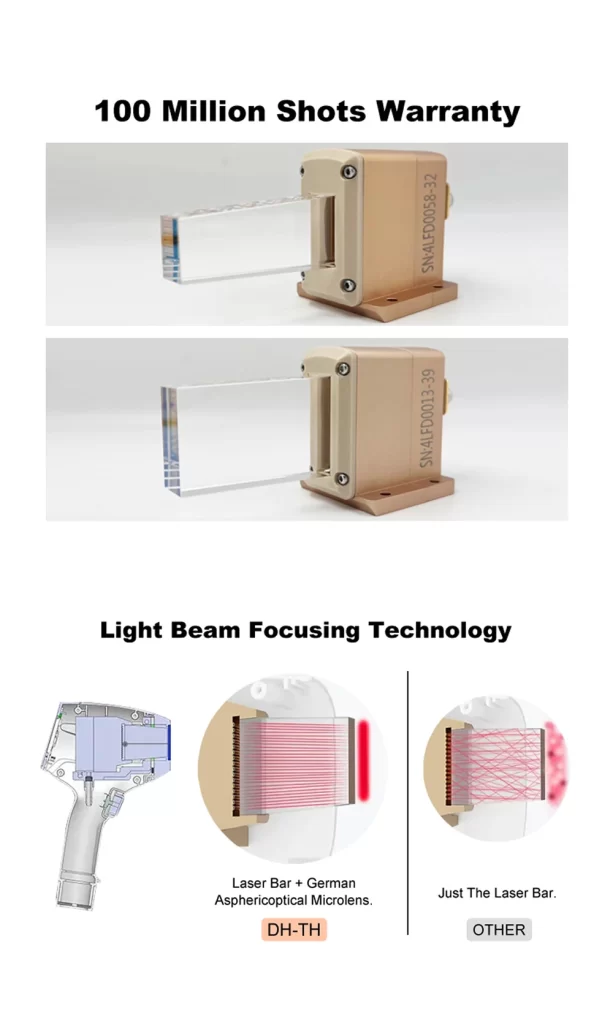

High-Performance USA Imported Laser Bars

Equipped with premium palladium bars imported from the USA, delivering over 95% spot uniformity. With an ultra-high peak power of 100W per bar (compared to the typical market range of 50W–80W), it guarantees stronger energy output and an extremely long service life of up to 50 million pulses.

Advanced TEC Sapphire Cooling System

Features a contact sapphire cooling system combined with TEC semiconductor technology (lens freezing capability). It maintains a handle temperature between -6ºC to 1ºC, offering 3 levels of precise cooling adjustment for optimized patient comfort and enabling continuous 24/7 operation.

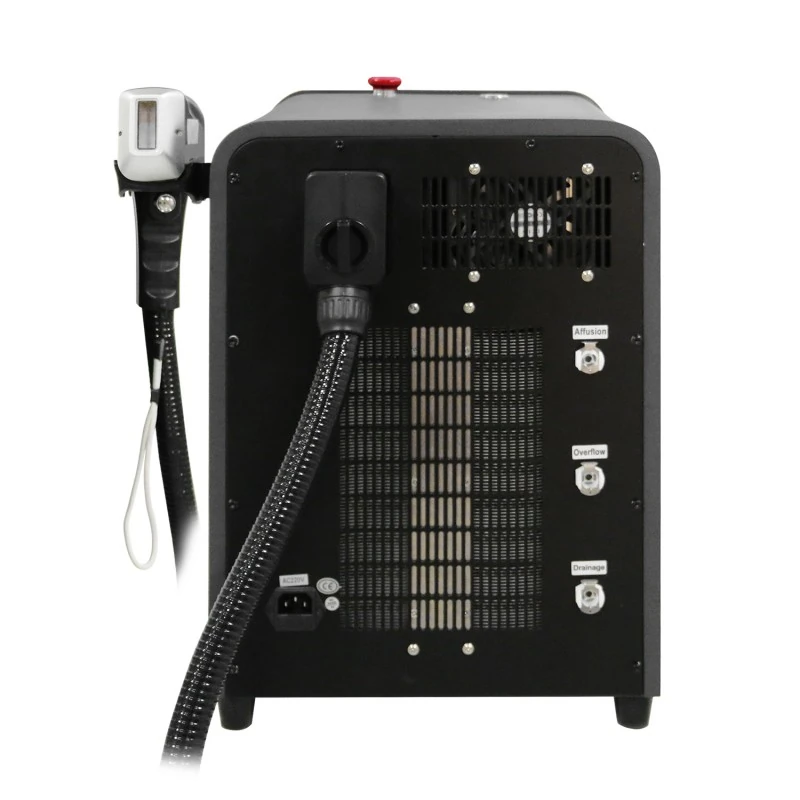

Intelligent Water Filtration & Italian Pump

Utilizes an imported Italian pump with a real-time water flow display for whisper-quiet operation. The intelligent dual filtration system effectively removes metal ions, eliminating the frustrating need to replace filter cartridges every 3–6 months.

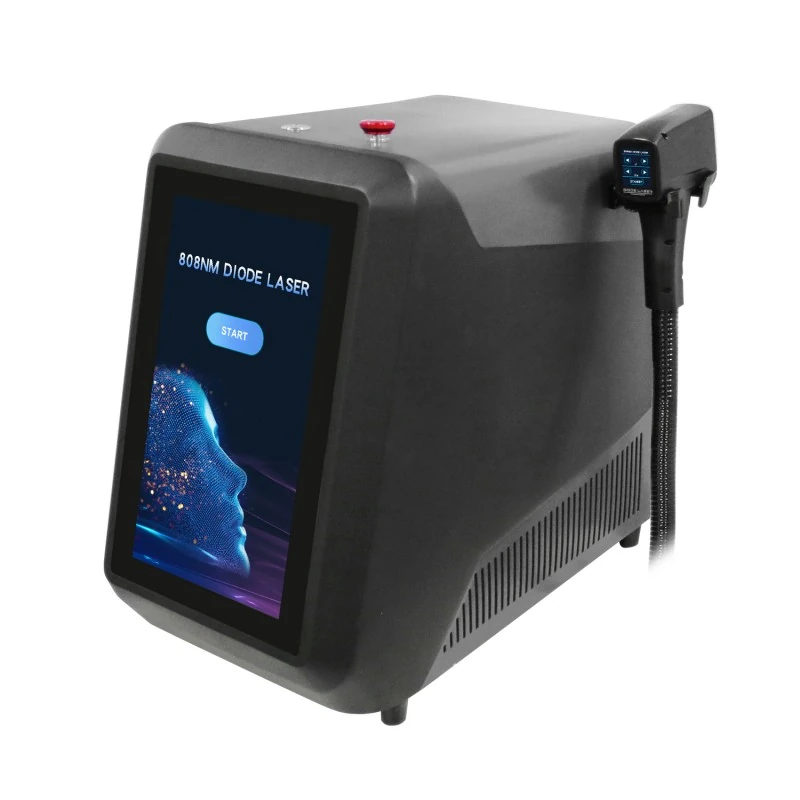

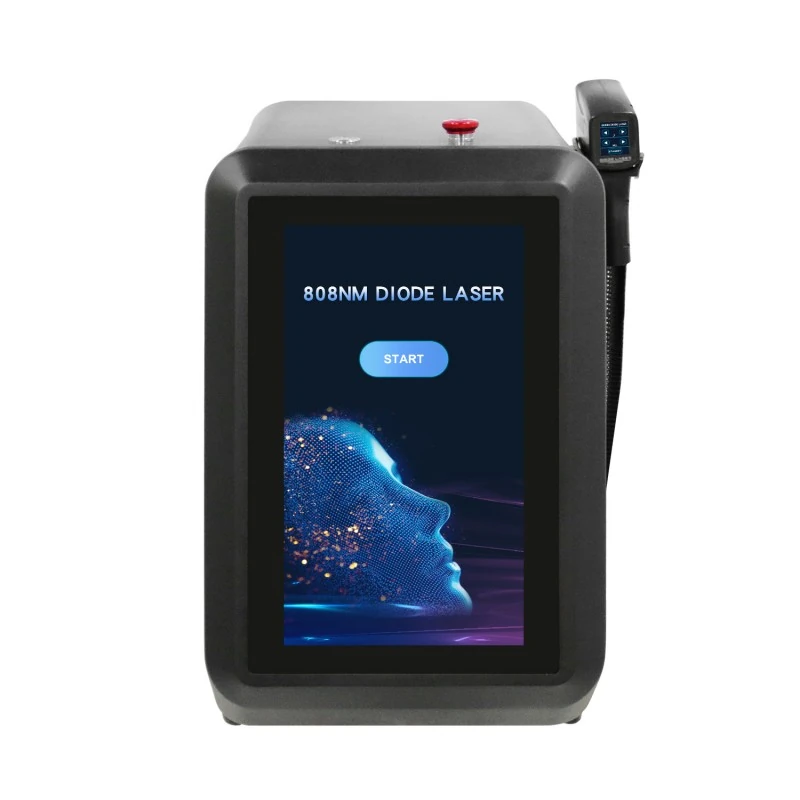

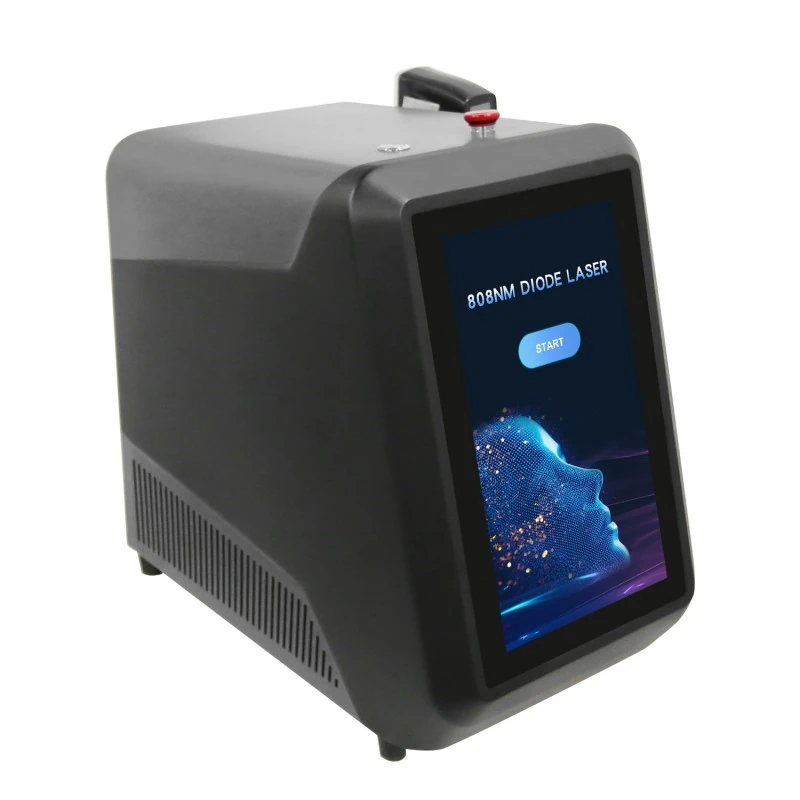

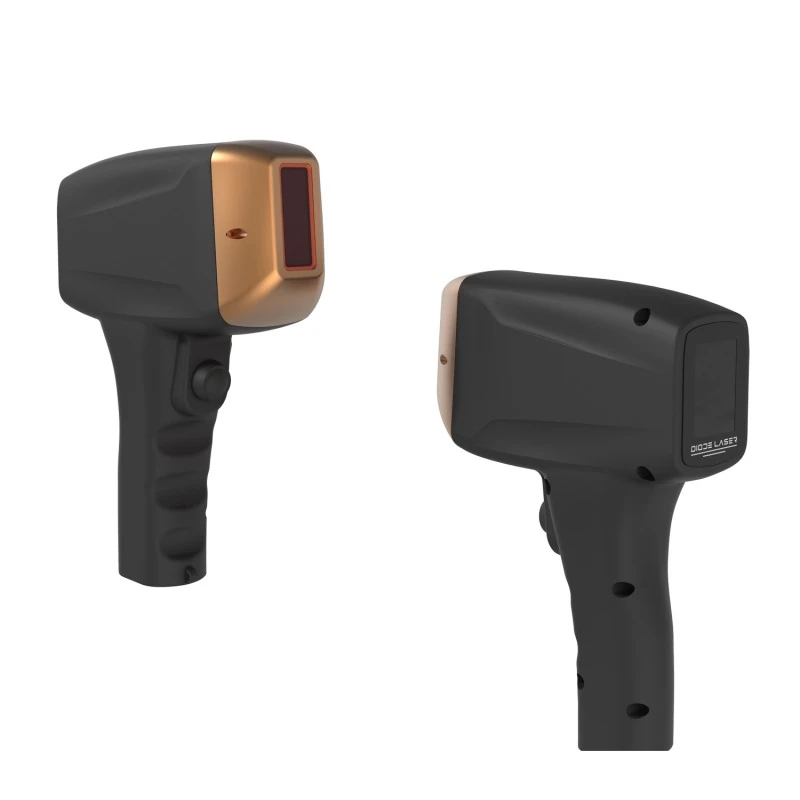

User-Friendly Dual-Screen Design

A massive 15.6-inch main LCD screen pairs with an intuitive LCD screen on the lightweight handle for effortless parameter adjustments. The professional interface provides preset options for genders, 8 body parts, 6 skin tones, and 4 hair colors.

Broad Clinical Applications

This multi-wavelength device is engineered for broad and versatile clinical aesthetic applications:

Full Body Hair Removal: Safely and permanently removes unwanted hair from the face, lip area, armpits, arms, chest, back, bikini line, and legs.

Versatility for All Hair Types: Effective on coarse, dark hair as well as stubborn, fine, and light-colored hair.

Safe for All Skin Tones: The 940nm and 1064nm wavelengths provide a focused, low-melanin-absorption solution, guaranteeing burn-free safety for dark skin tones (Fitzpatrick IV-VI) and tanned skin.

Technical Specifications

Specification	Details
Laser Type	Multi-Wavelength Diode Laser
Wavelengths	808nm + 790nm + 940nm + 1064nm
Laser Power Options	500W / 1000W / 1200W / 1600W
Spot Size	• 500W: 1016mm 20mm • 1200W: 1228mm 36mm
Energy Density	1 - 80 J/cm²
Frequency	1 - 10 Hz (Adjustable)
Cooling System	Semiconductor refrigeration + Water + Air cooling (Constant temperature)
Handle Temperature	-6ºC to 1ºC
Screen Size	15.6 inch Touch Screen + Handle LCD
Output Mode	Pulse output
Shell Material	ABS plastic + Metal
Voltage	AC 220V / AC 110V (Support customization)
Language	English (OEM available)
Package Size	61 * 50.5 * 61 cm
Gross Weight (G.W)	45 KG

Frequently Asked Questions (FAQ)

1. Is this diode laser suitable for dark skin tones?

Yes. Unlike traditional single-wavelength lasers, our machine integrates 940nm and 1064nm wavelengths. These specific wavelengths have very low melanin absorption and penetrate deeply to target the hair follicle’s blood supply, making it absolutely safe and effective for dark skin types (Fitzpatrick IV-VI) without the risk of epidermal burns.

2. What is the lifespan of the laser handle?

The applicator is equipped with premium palladium laser bars imported from the USA. Featuring advanced water and TEC cooling technology, the handle has an exceptionally long lifespan of up to 50 million pulses, ensuring high ROI for your clinic.

3. Do I need to replace the water filter frequently?

No. Our machine utilizes an intelligent dual filtration system combined with an imported Italian pump. It effectively removes metal ions and impurities from the water circuit, eliminating the traditional maintenance hassle of replacing filter cartridges every 3 to 6 months.

4. How does the cooling system ensure patient comfort?

The machine features an advanced contact sapphire cooling system backed by TEC semiconductor refrigeration. It actively monitors and maintains the treatment tip at a constant freezing temperature of -6ºC to 1ºC. This numbs the skin’s surface, ensuring a painless and highly comfortable hair removal experience even at high energy outputs.

5. Can I choose different spot sizes and power levels?

Yes, we offer multiple configurations to suit different clinic sizes and budgets. You can select laser power outputs ranging from 500W up to 1600W, with corresponding spot sizes expanding up to an ultra-large 12*36 mm (for the 1600W model) to dramatically speed up treatment times on large body areas like the back and legs.
